購買 IRFHM4234TRPBF與BYCHPS
購買即有保證

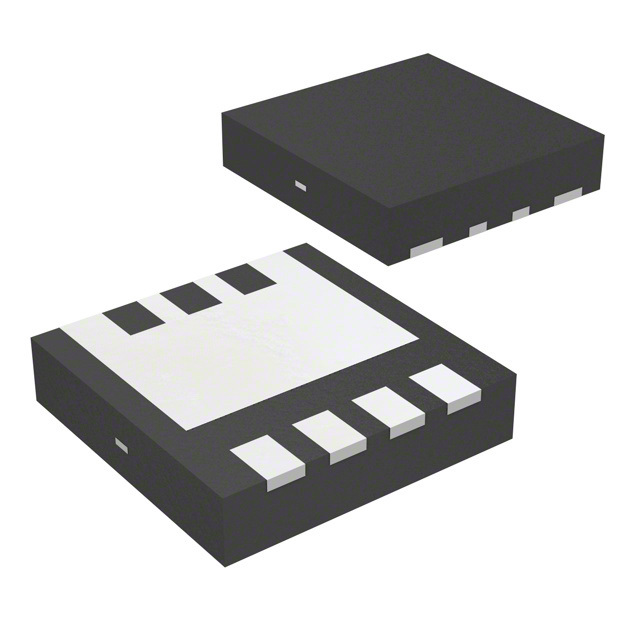

IRFHM4234TRPBF
- 型號:
- IRFHM4234TRPBF
- 描述:
- MOSFET N-CH 25V 20A PQFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12783 Pieces
簡單介紹
BYCHIPS是 IRFHM4234TRPBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRFHM4234TRPBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.1V @ 25µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 系列: | FASTIRFET™, HEXFET® |
| RDS（ON）（最大值）@標識，柵極電壓: | 4.4 mOhm @ 30A, 10V |
| 功率耗散（最大）: | 2.8W (Ta), 28W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 8-TQFN Exposed Pad |
| 其他名稱: | IRFHM4234TRPBFTR SP001572674 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | IRFHM4234TRPBF |
| 輸入電容（Ciss）（Max）@ Vds: | 1011pF @ 13V |
| 柵極電荷（Qg）（Max）@ Vgs: | 17nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 25V 20A (Ta) 2.8W (Ta), 28W (Tc) Surface Mount |
| 漏極至源極電壓（Vdss）: | 25V |
| 描述: | MOSFET N-CH 25V 20A PQFN |
| 電流 - 25°C連續排水（Id）: | 20A (Ta) |
| Email: | [email protected] |
