購買 C3M0075120K與BYCHPS
購買即有保證

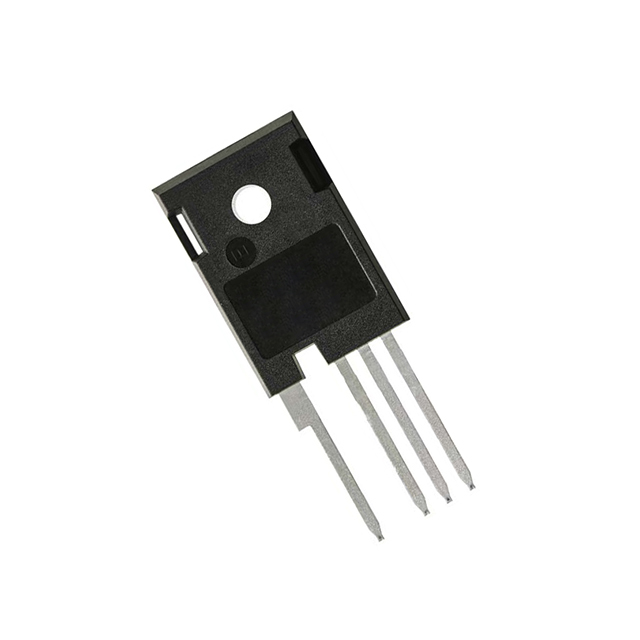

C3M0075120K
- 型號:
- C3M0075120K
- 製造商:
- Cree
- 描述:
- MOSFET N-CH SICFET 1.2KV TO247-4
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19309 Pieces
- 數據表:
- C3M0075120K.pdf
簡單介紹
BYCHIPS是 C3M0075120K的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的C3M0075120K購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4V @ 5mA |
|---|---|
| Vgs（最大）: | +19V, -8V |
| 技術: | SiCFET (Silicon Carbide) |
| 供應商設備封裝: | TO-247-4L |
| 系列: | C3M™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 90 mOhm @ 20A, 15V |
| 功率耗散（最大）: | 119W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | TO-247-4 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | C3M0075120K |
| 輸入電容（Ciss）（Max）@ Vds: | 1350pF @ 1000V |
| 柵極電荷（Qg）（Max）@ Vgs: | 51nC @ 15V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 1200V (1.2kV) 30.8A (Tc) 119W (Tc) Through Hole TO-247-4L |
| 驅動電壓（最大Rds開，最小Rds開）: | 15V |
| 漏極至源極電壓（Vdss）: | 1200V (1.2kV) |
| 描述: | MOSFET N-CH SICFET 1.2KV TO247-4 |
| 電流 - 25°C連續排水（Id）: | 30.8A (Tc) |
| Email: | [email protected] |
