購買 C3M0065090J-TR與BYCHPS
購買即有保證

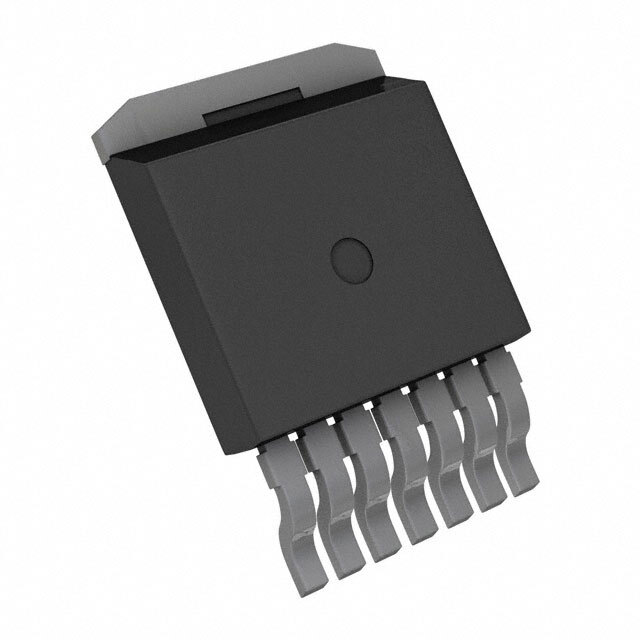

C3M0065090J-TR
- 型號:
- C3M0065090J-TR
- 製造商:
- Cree
- 描述:
- MOSFET N-CH 900V 35A D2PAK-7
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19634 Pieces
簡單介紹
BYCHIPS是 C3M0065090J-TR的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的C3M0065090J-TR購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.1V @ 5mA |
|---|---|
| 技術: | SiCFET (Silicon Carbide) |
| 供應商設備封裝: | D2PAK (7-Lead) |
| 系列: | C3M™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 78 mOhm @ 20A, 15V |
| 功率耗散（最大）: | 113W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商零件編號: | C3M0065090J-TR |
| 輸入電容（Ciss）（Max）@ Vds: | 660pF @ 600V |
| 柵極電荷（Qg）（Max）@ Vgs: | 30nC @ 15V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 900V 35A (Tc) 113W (Tc) Surface Mount D2PAK (7-Lead) |
| 漏極至源極電壓（Vdss）: | 900V |
| 描述: | MOSFET N-CH 900V 35A D2PAK-7 |
| 電流 - 25°C連續排水（Id）: | 35A (Tc) |
| Email: | [email protected] |
C3M0065090J-TR的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
C3M0065090D | Cree/Wolfspeed | MOSFET N-CH 900V 36A TO247-3 | 在線詢價 |
 |
C3M0065090J | Cree/Wolfspeed | MOSFET N-CH 900V 35A D2PAK-7 | 在線詢價 |
 |
C3M0065100J | Cree/Wolfspeed | 1000V, 65 MOHM, G3 SIC MOSFET | 在線詢價 |
 |
C3M0075120K | Cree/Wolfspeed | MOSFET N-CH SICFET 1.2KV TO247-4 | 在線詢價 |
 |
C3M0065100K | Cree/Wolfspeed | 1000V, 65 MOHM, G3 SIC MOSFET | 在線詢價 |
