購買 TK100S04N1L,LQ與BYCHPS
購買即有保證

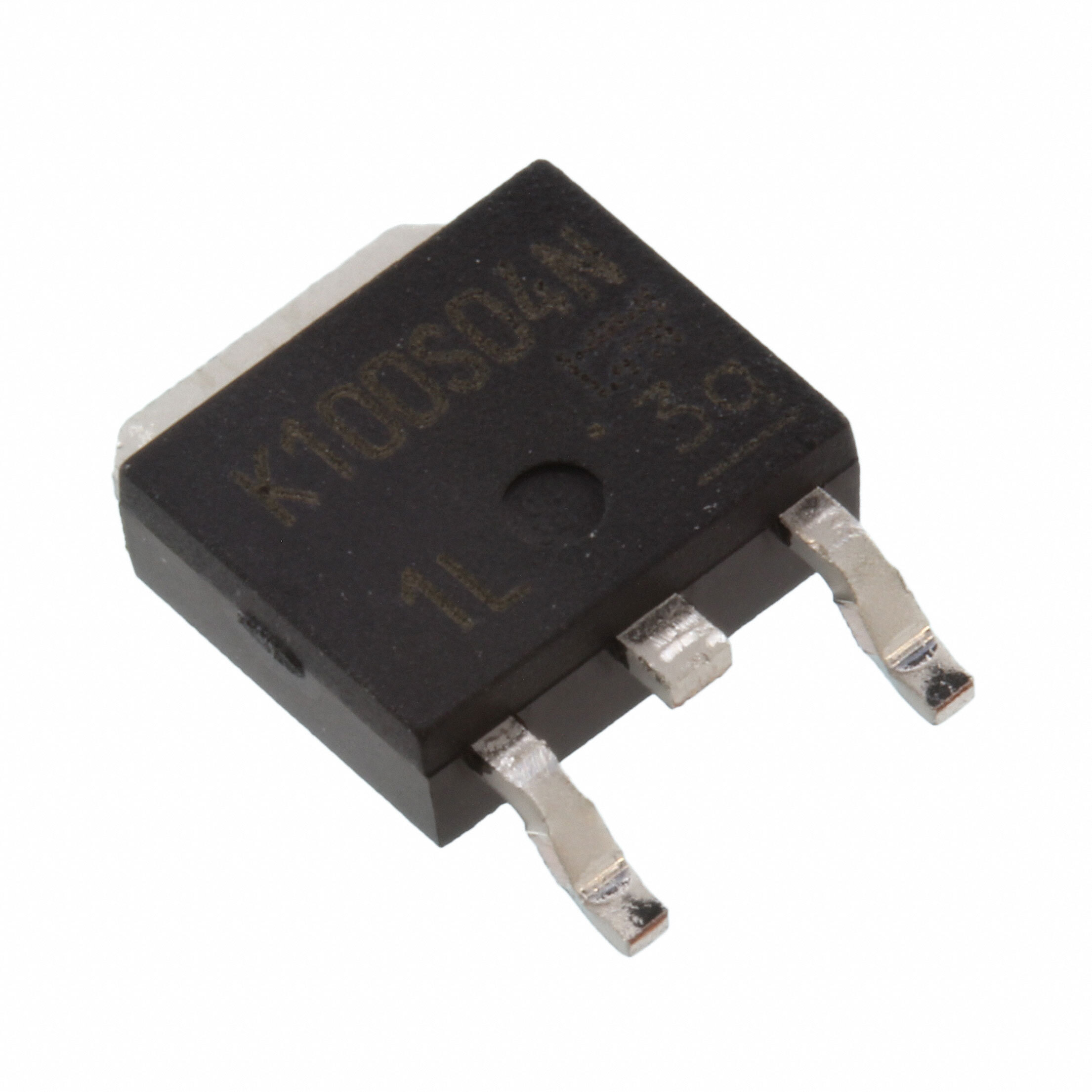

TK100S04N1L,LQ
- 型號:
- TK100S04N1L,LQ
- 描述:
- MOSFET N-CH 40V 100A DPAK
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14977 Pieces
簡單介紹
BYCHIPS是 TK100S04N1L,LQ的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TK100S04N1L,LQ購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.5V @ 500µA |
|---|---|
| Vgs（最大）: | ±20V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | DPAK+ |
| 系列: | U-MOSVIII-H |
| RDS（ON）（最大值）@標識，柵極電壓: | 2.3 mOhm @ 50A, 10V |
| 功率耗散（最大）: | 100W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| 其他名稱: | TK100S04N1L,LQ(O TK100S04N1LLQTR |
| 工作溫度: | 175°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | TK100S04N1L,LQ |
| 輸入電容（Ciss）（Max）@ Vds: | 5490pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 76nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 40V 100A (Ta) 100W (Tc) Surface Mount DPAK+ |
| 驅動電壓（最大Rds開，最小Rds開）: | 4.5V, 10V |
| 漏極至源極電壓（Vdss）: | 40V |
| 描述: | MOSFET N-CH 40V 100A DPAK |
| 電流 - 25°C連續排水（Id）: | 100A (Ta) |
| Email: | [email protected] |
