購買 WR-483250-15M2-G與BYCHPS
購買即有保證

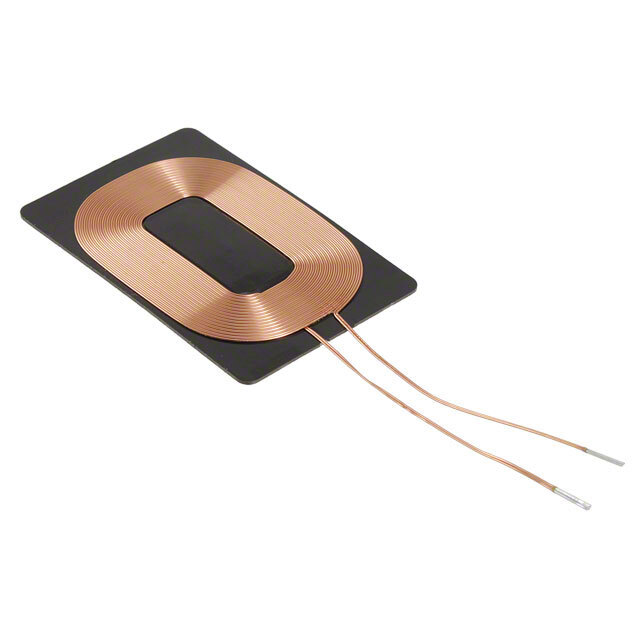

WR-483250-15M2-G
- 型號:
- WR-483250-15M2-G
- 製造商:
- TDK Corporation
- 描述:
- RX 1 COIL 1 LAYER BIFILAR 10.5UH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16002 Pieces
簡單介紹
BYCHIPS是 WR-483250-15M2-G的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的WR-483250-15M2-G購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | 1 Coil, 1 Layer, Bifilar |
|---|---|
| 公差: | ±5% |
| 尺寸/尺寸: | 1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm) |
| 系列: | WR |
| Q因子@頻率: | - |
| 其他名稱: | 445-9306 WR48325015M2G |
| 工作溫度: | -30°C ~ 70°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | WR-483250-15M2-G |
| 電感: | 10.5µH |
| 功能: | Receiver |
| 頻率 - 自諧振: | - |
| 展開說明: | 1 Coil, 1 Layer, Bifilar 10.5µH Wireless Charging Coil Receiver 200 mOhm Max |
| 描述: | RX 1 COIL 1 LAYER BIFILAR 10.5UH |
| 直流電阻（DCR）: | 200 mOhm Max |
| 目前評級: | - |
| 電流 - 飽和: | - |
| Email: | [email protected] |
