購買 TK31V60W,LVQ與BYCHPS
購買即有保證

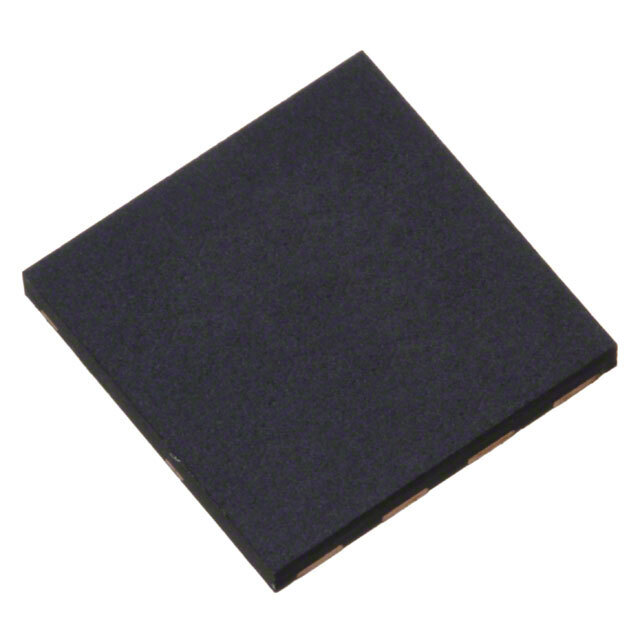

TK31V60W,LVQ
- 型號:
- TK31V60W,LVQ
- 描述:
- MOSFET N CH 600V 30.8A 5DFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16027 Pieces
- 數據表:
- TK31V60W,LVQ.pdf
簡單介紹
BYCHIPS是 TK31V60W,LVQ的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TK31V60W,LVQ購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3.7V @ 1.5mA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 5-DFN (8x8) |
| 系列: | DTMOSIV |
| RDS（ON）（最大值）@標識，柵極電壓: | 98 mOhm @ 15.4A, 10V |
| 功率耗散（最大）: | 240W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 4-VSFN Exposed Pad |
| 其他名稱: | TK31V60W,LVQ(S TK31V60WLVQTR |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | TK31V60W,LVQ |
| 輸入電容（Ciss）（Max）@ Vds: | 3000pF @ 300V |
| 柵極電荷（Qg）（Max）@ Vgs: | 86nC @ 10V |
| FET型: | N-Channel |
| FET特點: | Super Junction |
| 展開說明: | N-Channel 600V 30.8A (Ta) 240W (Tc) Surface Mount 5-DFN (8x8) |
| 漏極至源極電壓（Vdss）: | 600V |
| 描述: | MOSFET N CH 600V 30.8A 5DFN |
| 電流 - 25°C連續排水（Id）: | 30.8A (Ta) |
| Email: | [email protected] |
