購買 T9CP1A54-240與BYCHPS
購買即有保證

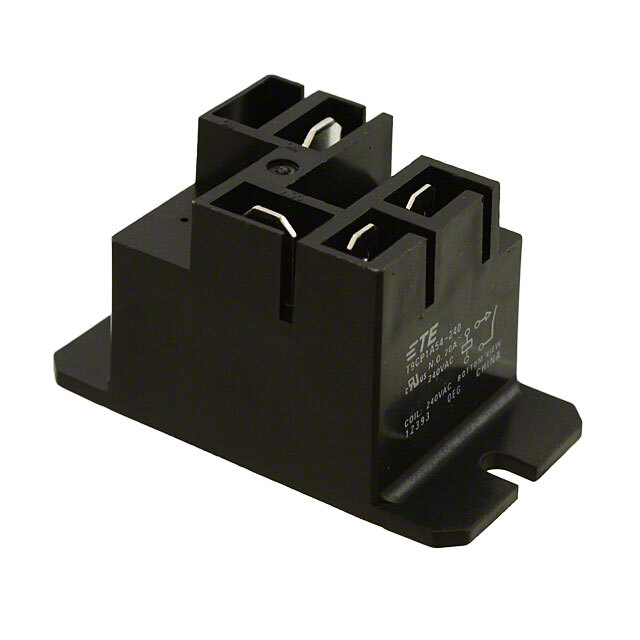

T9CP1A54-240
- 型號:
- T9CP1A54-240
- 描述:
- RELAY GEN PURPOSE SPST 30A 240V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19111 Pieces
簡單介紹
BYCHIPS是 T9CP1A54-240的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的T9CP1A54-240購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 192 VAC |
|---|---|
| 關閉電壓（最小）: | 24 VAC |
| 端接類型: | Quick Connect - 0.187"/0.250" |
| 切換電壓: | 250VAC - Max |
| 系列: | T9C, OEG |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1649341-2 16493412 PB1323 |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 15ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | T9CP1A54-240 |
| 特徵: | Insulation - Class F |
| 展開說明: | General Purpose Relay SPST-NO (1 Form A) 240VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPST 30A 240V |
| 觸點額定值（電流）: | 30A |
| 觸點材料: | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 240VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 12 kOhms |
| 線圈功率: | 1.6 VA |
| Email: | [email protected] |
