購買 XT424012與BYCHPS
購買即有保證

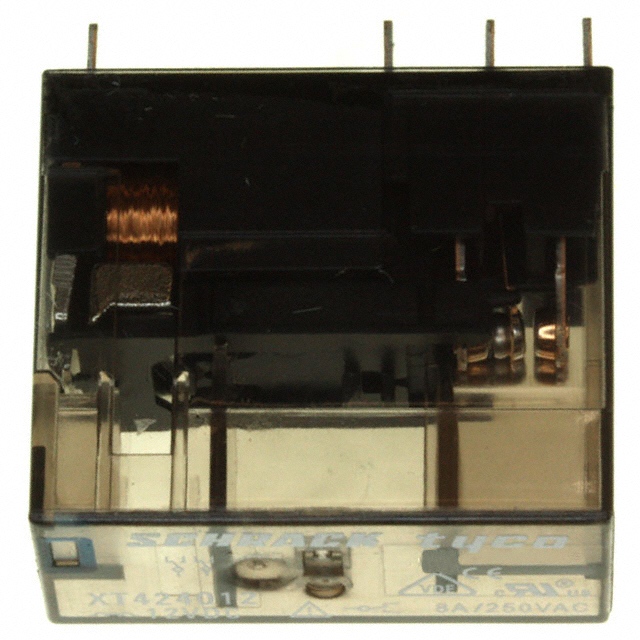

XT424012
- 型號:
- XT424012
- 描述:
- RELAY GEN PURPOSE DPDT 8A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14791 Pieces
簡單介紹
BYCHIPS是 XT424012的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的XT424012購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 8.4 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | Plug In |
| 切換電壓: | 400VAC - Max |
| 系列: | XT, SCHRACK |
| 發布時間: | 6ms |
| 繼電器類型: | General Purpose |
| 封装: | Tube |
| 其他名稱: | 1887200-2 PB1194 |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 9ms |
| 安裝類型: | Socketable |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | XT424012 |
| 特徵: | Insulation - Class F |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable |
| 描述: | RELAY GEN PURPOSE DPDT 8A 12V |
| 觸點額定值（電流）: | 8A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 360 Ohms |
| 線圈功率: | 400 mW |
| 線圈電流: | 33.3mA |
| Email: | [email protected] |
