購買 T73S5D15-24與BYCHPS
購買即有保證

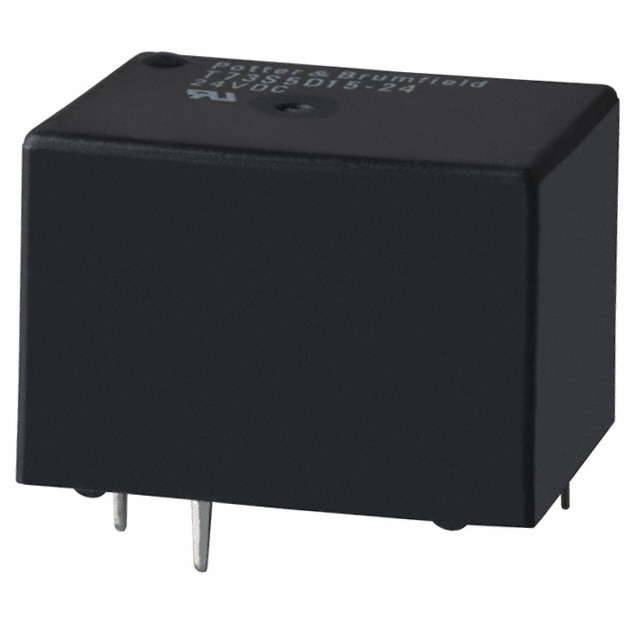

T73S5D15-24
- 型號:
- T73S5D15-24
- 描述:
- RELAY GEN PURPOSE SPDT 10A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13946 Pieces
簡單介紹
BYCHIPS是 T73S5D15-24的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的T73S5D15-24購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 15.6 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 120VAC, 28VDC - Max |
| 系列: | T73 |
| 發布時間: | 5ms |
| 繼電器類型: | General Purpose |
| 封装: | Tube |
| 其他名稱: | 3-1393197-4 PB366 |
| 工作溫度: | -30°C ~ 80°C |
| 操作時間: | 10ms |
| 安裝類型: | Through Hole |
| 製造商零件編號: | T73S5D15-24 |
| 特徵: | Insulation - Class F, Sealed - Fully |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 10A 24V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.28 kOhms |
| 線圈功率: | 450 mW |
| 線圈電流: | 20.9mA |
| Email: | [email protected] |
