購買 G2RV-SL700 DC24 (DC21)與BYCHPS
購買即有保證

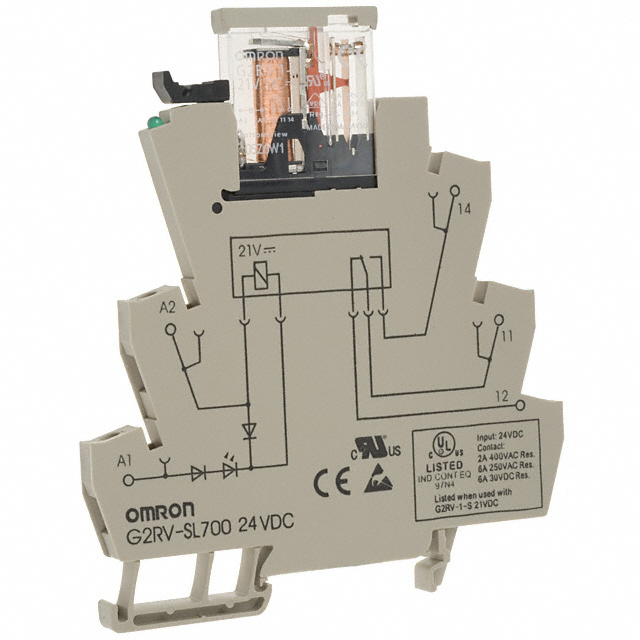

G2RV-SL700 DC24 (DC21)
- 型號:
- G2RV-SL700 DC24 (DC21)
- 描述:
- RELAY GEN PURPOSE SPDT 6A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12515 Pieces
簡單介紹
BYCHIPS是 G2RV-SL700 DC24 (DC21)的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G2RV-SL700 DC24 (DC21)購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 19.2 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 440VAC, 125VDC - Max |
| 系列: | G2RV |
| 發布時間: | 40ms |
| 繼電器類型: | General Purpose with Socket |
| 封装: | Bulk |
| 其他名稱: | G2RV-SL700-DC24 G2RV-SL700-DC24DC21 G2RVSL700DC24 G2RVSL700DC24DC21 Z2535 |
| 工作溫度: | -40°C ~ 55°C |
| 操作時間: | 20ms |
| 安裝類型: | DIN Rail |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 20 Weeks |
| 製造商零件編號: | G2RV-SL700 DC24 (DC21) |
| 特徵: | - |
| 展開說明: | General Purpose with Socket Relay SPDT (1 Form C) 24VDC Coil DIN Rail |
| 描述: | RELAY GEN PURPOSE SPDT 6A 24V |
| 觸點額定值（電流）: | 6A |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | 300 mW |
| 線圈電流: | 13.3mA |
| Email: | [email protected] |
