購買 STU6N90K5與BYCHPS
購買即有保證

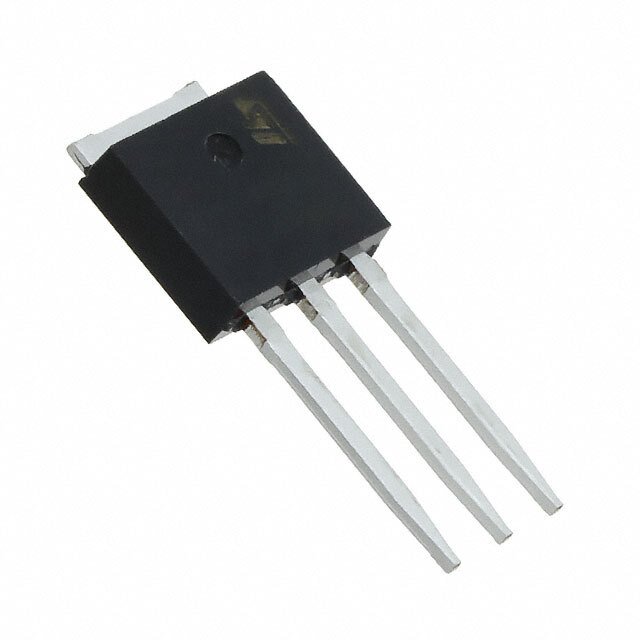

STU6N90K5
- 型號:
- STU6N90K5
- 製造商:
- ST
- 描述:
- N-CHANNEL 900 V, 2.1 OHM TYP., 3
- 庫存數量:
- 14142 Pieces
- 數據表:
- STU6N90K5.pdf
簡單介紹
BYCHIPS是 STU6N90K5的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的STU6N90K5購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 5V @ 100µA |
|---|---|
| Vgs（最大）: | ±30V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | IPAK (TO-251) |
| 系列: | * |
| RDS（ON）（最大值）@標識，柵極電壓: | - |
| 功率耗散（最大）: | - |
| 封装: | Tube |
| 封裝/箱體: | TO-251-3 Long Leads, IPak, TO-251AB |
| 其他名稱: | 497-17076 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 26 Weeks |
| 製造商零件編號: | STU6N90K5 |
| 輸入電容（Ciss）（Max）@ Vds: | - |
| 柵極電荷（Qg）（Max）@ Vgs: | - |
| FET型: | N-Channel |
| FET特點: | Current Sensing |
| 展開說明: | N-Channel 900V 6A Through Hole IPAK (TO-251) |
| 驅動電壓（最大Rds開，最小Rds開）: | 10V |
| 漏極至源極電壓（Vdss）: | 900V |
| 描述: | N-CHANNEL 900 V, 2.1 OHM TYP., 3 |
| 電流 - 25°C連續排水（Id）: | 6A |
| Email: | [email protected] |
