購買 PRD-7DH0-24與BYCHPS
購買即有保證

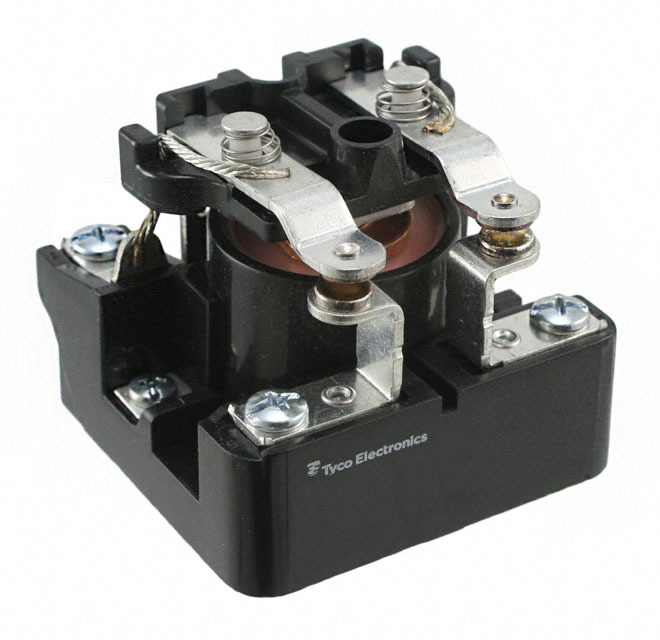

PRD-7DH0-24
- 型號:
- PRD-7DH0-24
- 描述:
- RELAY GEN PURPOSE DPST 20A 24V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 19380 Pieces
- 數據表:
- PRD-7DH0-24.pdf
簡單介紹
BYCHIPS是 PRD-7DH0-24的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PRD-7DH0-24購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 600VAC, 125VDC - Max |
| 系列: | PRD |
| 發布時間: | 20ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 2-1393130-0 |
| 工作溫度: | -55°C ~ 80°C |
| 操作時間: | 40ms |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | PRD-7DH0-24 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay DPST (2 Form A) 24VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPST 20A 24V |
| 觸點額定值（電流）: | 20A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | DPST (2 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 288 Ohms |
| 線圈功率: | 2 W |
| 線圈電流: | 84mA |
| Email: | [email protected] |
