購買 PRD-11DY0-110與BYCHPS
購買即有保證

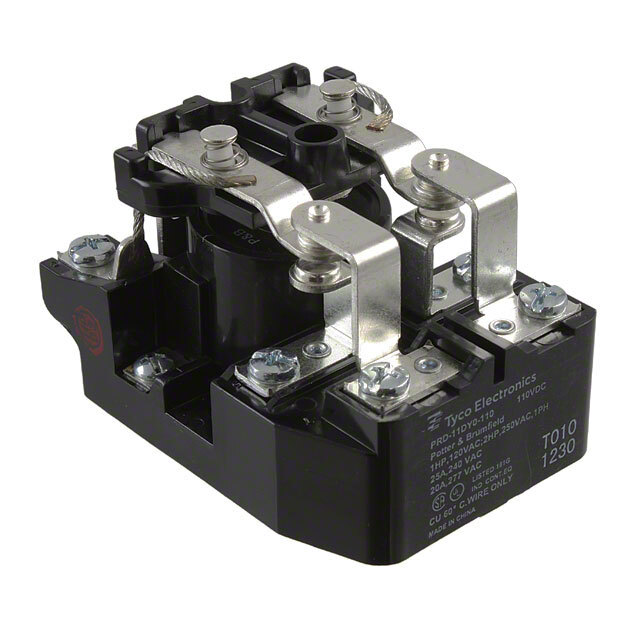

PRD-11DY0-110
- 型號:
- PRD-11DY0-110
- 描述:
- RELAY GEN PURPOSE DPDT 25A 110V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 14659 Pieces
簡單介紹
BYCHIPS是 PRD-11DY0-110的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PRD-11DY0-110購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 82.5 VDC |
|---|---|
| 關閉電壓（最小）: | 11 VDC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 600VAC, 125VDC - Max |
| 系列: | PRD |
| 發布時間: | 20ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 6-1393127-0 6-1393127-0-ND 613931270 PB1346 PRD-11DY0-110-ND |
| 工作溫度: | -55°C ~ 80°C |
| 操作時間: | 40ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | PRD-11DY0-110 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 110VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 25A 110V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 110VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 6.05 kOhms |
| 線圈功率: | 2 W |
| 線圈電流: | 18.2mA |
| Email: | [email protected] |
