購買 PRD-3AY0-240與BYCHPS
購買即有保證

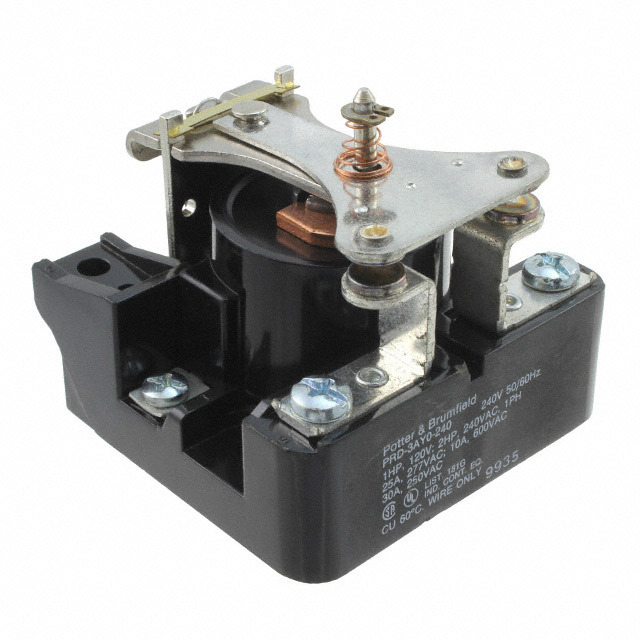

PRD-3AY0-240
- 型號:
- PRD-3AY0-240
- 描述:
- RELAY GEN PURPOSE SPST 25A 240V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 15849 Pieces
- 數據表:
- PRD-3AY0-240.pdf
簡單介紹
BYCHIPS是 PRD-3AY0-240的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PRD-3AY0-240購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 204 VAC |
|---|---|
| 關閉電壓（最小）: | 24 VAC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 600VAC, 125VDC - Max |
| 系列: | PRD |
| 發布時間: | 20ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 8-1393127-1 8-1393127-1-ND 813931271 PB1972 PRD-3AY0-240-ND |
| 工作溫度: | -55°C ~ 45°C |
| 操作時間: | 40ms |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | PRD-3AY0-240 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay SPST-NO (1 Form X) 240VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPST 25A 240V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | SPST-NO (1 Form X) |
| 線圈電壓: | 240VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.2 kOhms |
| 線圈功率: | 9.8 VA |
| 線圈電流: | 43mA |
| Email: | [email protected] |
