購買 PRD-11DY0-48與BYCHPS
購買即有保證

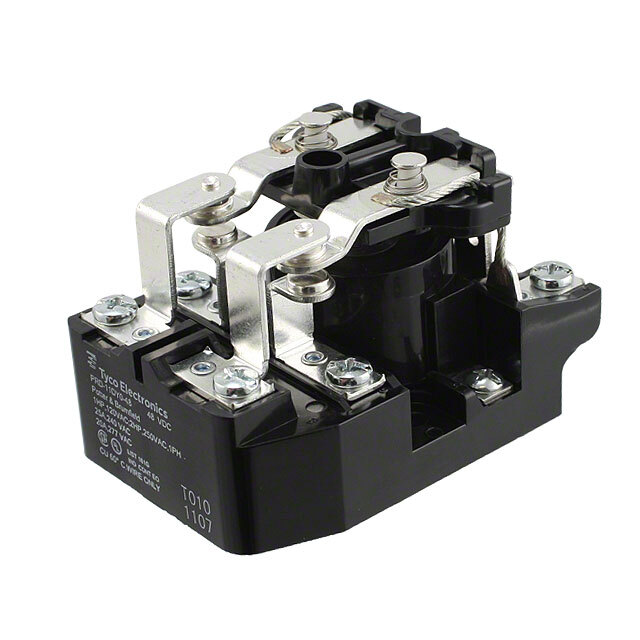

PRD-11DY0-48
- 型號:
- PRD-11DY0-48
- 描述:
- RELAY GEN PURPOSE DPDT 25A 48V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15597 Pieces
- 數據表:
- PRD-11DY0-48.pdf
簡單介紹
BYCHIPS是 PRD-11DY0-48的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PRD-11DY0-48購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 36 VDC |
|---|---|
| 關閉電壓（最小）: | 4.8 VDC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 600VAC, 125VDC - Max |
| 系列: | PRD |
| 發布時間: | 20ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 6-1393127-3 PRD11DY048 |
| 工作溫度: | -55°C ~ 80°C |
| 操作時間: | 40ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 9 Weeks |
| 製造商零件編號: | PRD-11DY0-48 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 48VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 25A 48V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 48VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.15 kOhms |
| 線圈功率: | 2 W |
| 線圈電流: | 41.7mA |
| Email: | [email protected] |
