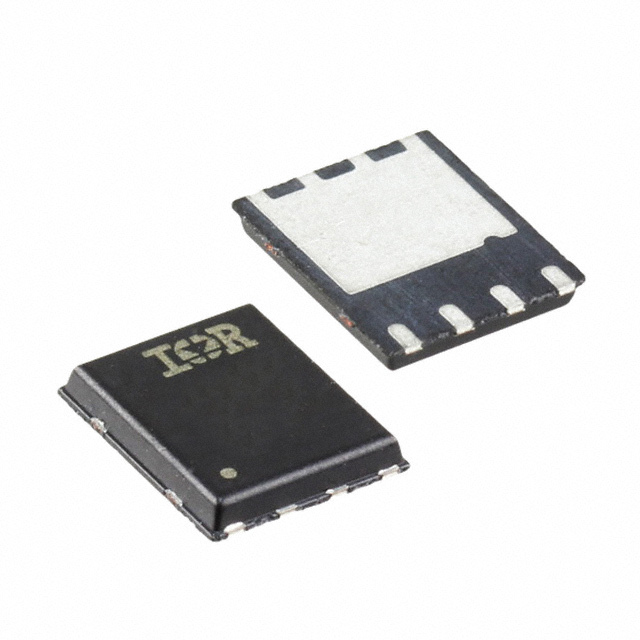

IRFH7085TRPBF
- 型號:
- IRFH7085TRPBF
- 描述:
- MOSFET N-CH 60V 23A 6-PQFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17537 Pieces
簡單介紹
BYCHIPS是 IRFH7085TRPBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRFH7085TRPBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3.7V @ 150µA |
|---|---|
| Vgs（最大）: | ±20V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | PQFN (5x6) |
| 系列: | StrongIRFET™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 3.2 mOhm @ 75A, 10V |
| 功率耗散（最大）: | 156W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 8-PowerVDFN |
| 其他名稱: | IRFH7085TRPBFTR SP001560390 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | IRFH7085TRPBF |
| 輸入電容（Ciss）（Max）@ Vds: | 6460pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 165nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 60V 100A (Tc) 156W (Tc) Surface Mount PQFN (5x6) |
| 驅動電壓（最大Rds開，最小Rds開）: | 6V, 10V |
| 漏極至源極電壓（Vdss）: | 60V |
| 描述: | MOSFET N-CH 60V 23A 6-PQFN |
| 電流 - 25°C連續排水（Id）: | 100A (Tc) |
| Email: | [email protected] |
