購買 IRFH7911TR2PBF與BYCHPS
購買即有保證

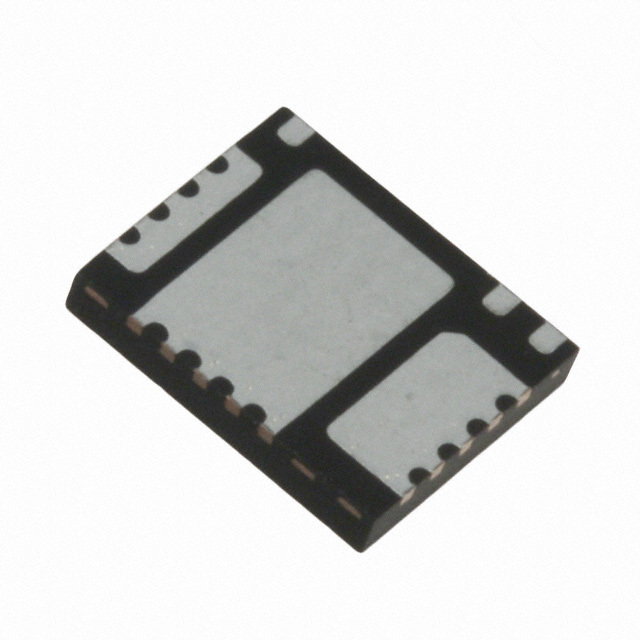

IRFH7911TR2PBF
- 型號:
- IRFH7911TR2PBF
- 描述:
- MOSFET 2N-CH 30V 13A/28A PQFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18348 Pieces
簡單介紹
BYCHIPS是 IRFH7911TR2PBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRFH7911TR2PBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.35V @ 25µA |
|---|---|
| 供應商設備封裝: | PQFN (5x6) |
| 系列: | HEXFET® |
| RDS（ON）（最大值）@標識，柵極電壓: | 8.6 mOhm @ 12A, 10V |
| 功率 - 最大: | 2.4W, 3.4W |
| 封装: | Original-Reel® |
| 封裝/箱體: | 18-PowerVQFN |
| 其他名稱: | IRFH7911TR2PBFDKR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 2 (1 Year) |
| 製造商零件編號: | IRFH7911TR2PBF |
| 輸入電容（Ciss）（Max）@ Vds: | 1060pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 12nC @ 4.5V |
| FET型: | 2 N-Channel (Dual) |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) 30V 13A, 28A 2.4W, 3.4W Surface Mount PQFN (5x6) |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET 2N-CH 30V 13A/28A PQFN |
| 電流 - 25°C連續排水（Id）: | 13A, 28A |
| Email: | [email protected] |
