購買 HTNFET-T與BYCHPS
購買即有保證

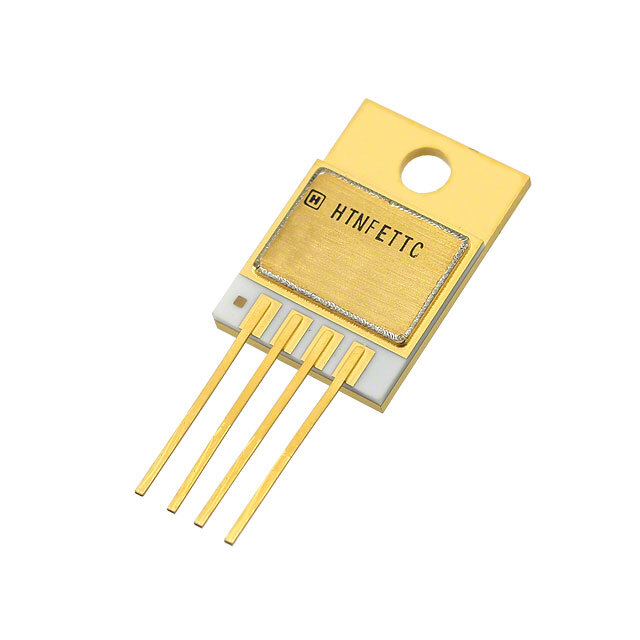

HTNFET-T
- 型號:
- HTNFET-T
- 描述:
- MOSFET N-CH 55V 4-PIN
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 16138 Pieces
- 數據表:
- HTNFET-T.pdf
簡單介紹
BYCHIPS是 HTNFET-T的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的HTNFET-T購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.4V @ 100µA |
|---|---|
| Vgs（最大）: | 10V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 4-Power Tab |
| 系列: | HTMOS™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 400 mOhm @ 100mA, 5V |
| 功率耗散（最大）: | 50W (Tj) |
| 封装: | Bulk |
| 封裝/箱體: | 4-SIP |
| 其他名稱: | 342-1091 HTNFET-T-ND HTNFETT |
| 工作溫度: | -55°C ~ 225°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | HTNFET-T |
| 輸入電容（Ciss）（Max）@ Vds: | 290pF @ 28V |
| 柵極電荷（Qg）（Max）@ Vgs: | 4.3nC @ 5V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 55V 50W (Tj) Through Hole 4-Power Tab |
| 驅動電壓（最大Rds開，最小Rds開）: | 5V |
| 漏極至源極電壓（Vdss）: | 55V |
| 描述: | MOSFET N-CH 55V 4-PIN |
| 電流 - 25°C連續排水（Id）: | - |
| Email: | [email protected] |
