購買 HI05-1A66與BYCHPS
購買即有保證

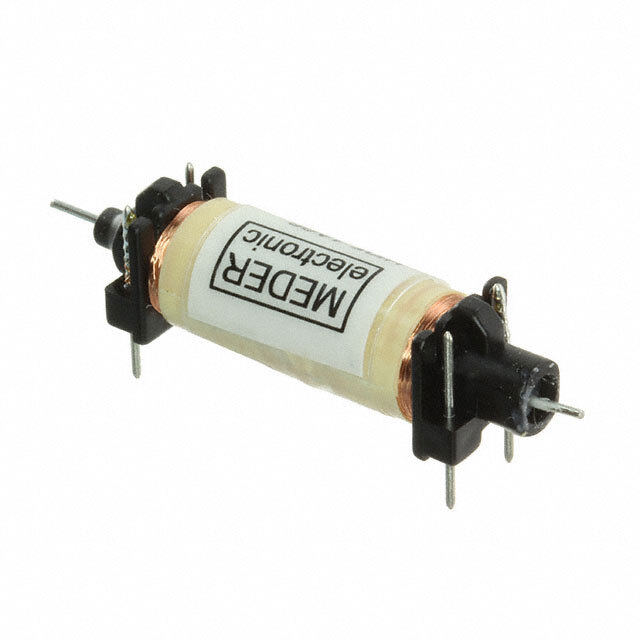

HI05-1A66
- 型號:
- HI05-1A66
- 描述:
- REED RELAY SPST-NO 5V PCB
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12487 Pieces
- 數據表:
- HI05-1A66.pdf
簡單介紹
BYCHIPS是 HI05-1A66的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的HI05-1A66購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.5 VDC |
|---|---|
| 關閉電壓（最小）: | 0.75 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 200VAC, 200VDC - Max |
| 系列: | HI |
| 發布時間: | 0.05ms |
| 繼電器類型: | Reed |
| 封装: | Bulk |
| 其他名稱: | 374-1389 3905171000 |
| 工作溫度: | -20°C ~ 70°C |
| 操作時間: | 0.7ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | HI05-1A66 |
| 特徵: | Sealed - Fully |
| 展開說明: | Reed Relay SPST-NO (1 Form A) Through Hole |
| 描述: | REED RELAY SPST-NO 5V PCB |
| 觸點額定值（電流）: | 500mA |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 600 Ohms |
| 線圈功率: | 42 mW |
| 線圈電流: | 8.3mA |
| Email: | [email protected] |
