購買 JMSCD-26XM與BYCHPS
購買即有保證

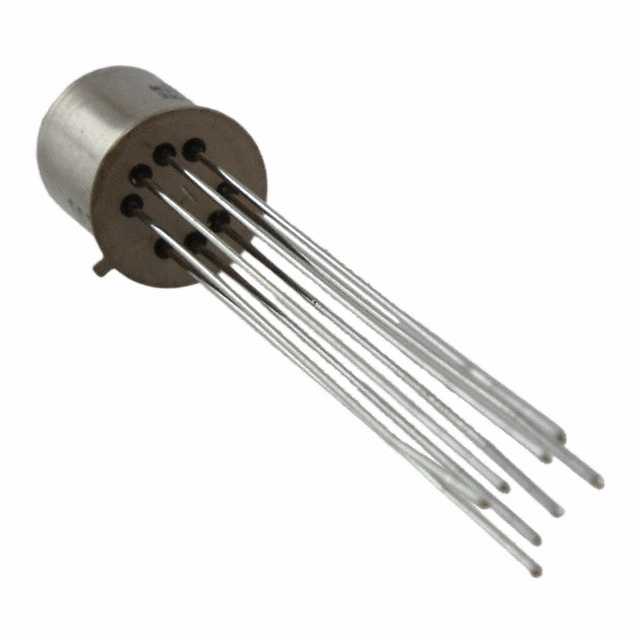

JMSCD-26XM
- 型號:
- JMSCD-26XM
- 描述:
- RELAY GEN PURPOSE DPDT 1A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 13521 Pieces
- 數據表:
- JMSCD-26XM.pdf
簡單介紹
BYCHIPS是 JMSCD-26XM的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的JMSCD-26XM購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 14 VDC |
|---|---|
| 關閉電壓（最小）: | 1.4 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 28VDC - Nom |
| 系列: | Military, MIL-R-39016/16, MS, CII |
| 發布時間: | 7.5ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1-1617128-2 1122-1086 1122-1086-MIL A101644 A101644-ND JMSCD26XM M39016/16-036M |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 4ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | JMSCD-26XM |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) Through Hole |
| 描述: | RELAY GEN PURPOSE DPDT 1A 26.5V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | - |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 3.3 kOhms |
| 線圈功率: | 213 mW |
| 線圈電流: | 8mA |
| Email: | [email protected] |
