購買 FDQ7698S與BYCHPS
購買即有保證

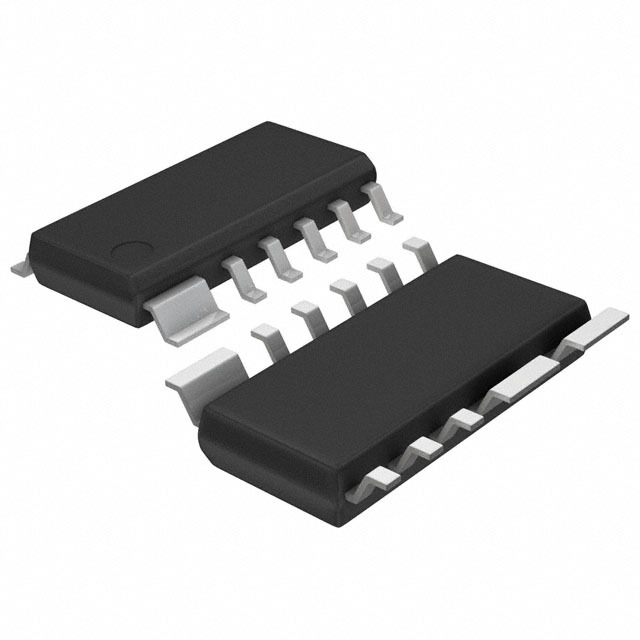

FDQ7698S
- 型號:
- FDQ7698S
- 描述:
- MOSFET 2N-CH 30V 12A/15A 14SOIC
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16645 Pieces
- 數據表:
- FDQ7698S.pdf
簡單介紹
BYCHIPS是 FDQ7698S的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FDQ7698S購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3V @ 250µA |
|---|---|
| 供應商設備封裝: | 14-SO |
| 系列: | PowerTrench® |
| RDS（ON）（最大值）@標識，柵極電壓: | 7.5 mOhm @ 15A, 10V |
| 功率 - 最大: | 1.1W, 1.3W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 14-SOIC (0.154", 3.90mm Width) 11 Leads, Fused Leads |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | FDQ7698S |
| 輸入電容（Ciss）（Max）@ Vds: | 1324pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 17nC @ 5V |
| FET型: | 2 N-Channel (Dual) |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) 30V 12A, 15A 1.1W, 1.3W Surface Mount 14-SO |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET 2N-CH 30V 12A/15A 14SOIC |
| 電流 - 25°C連續排水（Id）: | 12A, 15A |
| Email: | [email protected] |
FDQ7698S的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
AO4842L | Alpha & Omega Semiconductor Inc. | MOSFET 2N-CH 30V 7.7A 8-SOIC | 在線詢價 |
|
DMP2066LSD-13 | Diodes Incorporated | MOSFET 2P-CH 20V 5.8A 8-SOIC | 在線詢價 |
|
AO4806 | Alpha & Omega Semiconductor Inc. | MOSFET 2N-CH 20V 9.4A 8-SOIC | 在線詢價 |
 |
SIA915DJ-T1-GE3 | Vishay Siliconix | MOSFET 2P-CH 30V 4.5A SC-70-6L | 在線詢價 |
 |
ZXMD63N02XTC | Diodes Incorporated | MOSFET 2N-CH 20V 2.5A 8MSOP | 在線詢價 |
 |
ECH8662-TL-HX | ON Semiconductor | MOSFET N-CH ECH8 | 在線詢價 |
 |
TMC1320-LA | Trinamic Motion Control GmbH | MOSFET N/P-CH 30V 8PQFN | 在線詢價 |
|
NTGD3133PT1G | ON Semiconductor | MOSFET 2P-CH 20V 1.6A 6TSOP | 在線詢價 |
 |
ECH8667-TL-H | ON Semiconductor | MOSFET 2P-CH 30V 5.5A ECH8 | 在線詢價 |
 |
SI5509DC-T1-E3 | Vishay Siliconix | MOSFET N/P-CH 20V 6.1A 1206-8 | 在線詢價 |
 |
SI4943CDY-T1-E3 | Vishay Siliconix | MOSFET 2P-CH 20V 8A 8-SOIC | 在線詢價 |
 |
APTC80DSK29T3G | Microsemi Corporation | MOSFET 2N-CH 800V 15A SP3 | 在線詢價 |
 |
SIZ728DT-T1-GE3 | Vishay Siliconix | MOSFET 2N-CH 25V 16A 6-POWERPAIR | 在線詢價 |
|
AO4822A | Alpha & Omega Semiconductor Inc. | MOSFET 2N-CH 30V 8A 8SOIC | 在線詢價 |
