購買 ETQ-P5M101YGC與BYCHPS
購買即有保證

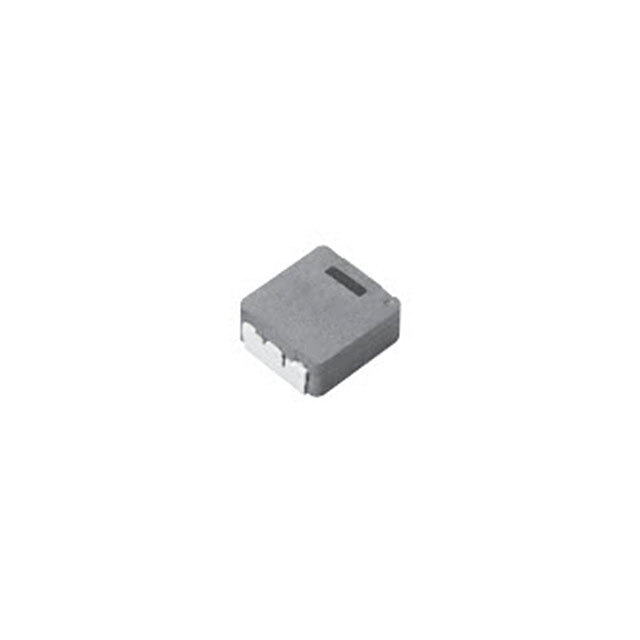

ETQ-P5M101YGC
- 型號:
- ETQ-P5M101YGC
- 製造商:
- Panasonic
- 描述:
- FIXED IND 97UH 2.7A 229 MOHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16355 Pieces
簡單介紹
BYCHIPS是 ETQ-P5M101YGC的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ETQ-P5M101YGC購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.421" L x 0.394" W (10.70mm x 10.00mm) |
| 屏蔽: | Shielded |
| 系列: | PCC-M1050M |
| 評級: | AEC-Q200 |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 2-SMD, J-Lead |
| 其他名稱: | ETQP5M101YGC PCD2348TR |
| 工作溫度: | -40°C ~ 150°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 材料 - 核: | Metal Composite |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | ETQ-P5M101YGC |
| 電感: | 97µH |
| 高度 - 座高（最大）: | 0.197" (5.00mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 97µH Shielded Wirewound Inductor 2.7A 229 mOhm Max 2-SMD, J-Lead |
| 描述: | FIXED IND 97UH 2.7A 229 MOHM SMD |
| 直流電阻（DCR）: | 229 mOhm Max |
| 目前評級: | 2.7A |
| 電流 - 飽和: | 3A |
| Email: | [email protected] |
