購買 ETQ-P8M4R7JFA與BYCHPS
購買即有保證

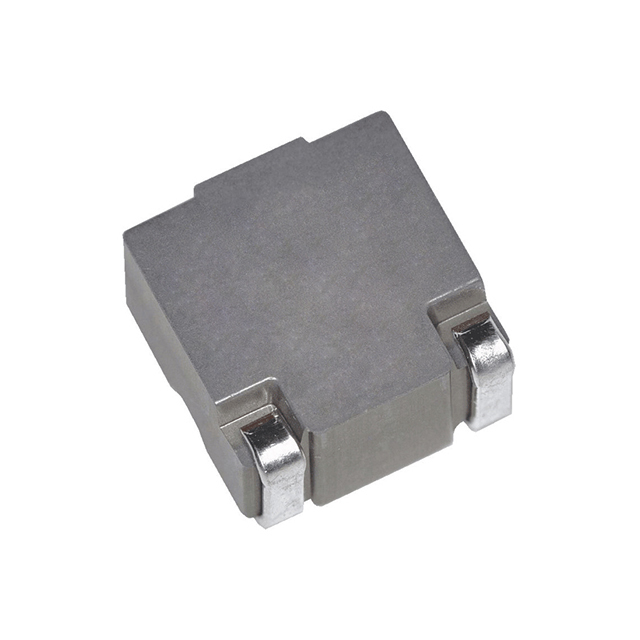

ETQ-P8M4R7JFA
- 型號:
- ETQ-P8M4R7JFA
- 製造商:
- Panasonic
- 描述:
- FIXED IND 4.7UH 16.8A 5.39 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16299 Pieces
簡單介紹
BYCHIPS是 ETQ-P8M4R7JFA的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ETQ-P8M4R7JFA購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 尺寸/尺寸: | 0.496" L x 0.516" W (12.60mm x 13.10mm) |
| 屏蔽: | Shielded |
| 系列: | PCC-M1280MF |
| 評級: | AEC-Q200 |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 2-SMD, J-Lead |
| 其他名稱: | ETQP8M4R7JFA PCD2469TR |
| 工作溫度: | -40°C ~ 160°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Metal Composite |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | ETQ-P8M4R7JFA |
| 電感: | 4.7µH |
| 高度 - 座高（最大）: | 0.315" (8.00mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 4.7µH Shielded Wirewound Inductor 16.8A 5.39 mOhm Max 2-SMD, J-Lead |
| 描述: | FIXED IND 4.7UH 16.8A 5.39 MOHM |
| 直流電阻（DCR）: | 5.39 mOhm Max |
| 目前評級: | 16.8A |
| 電流 - 飽和: | 24.7A |
| Email: | [email protected] |
