購買 DPC-3Q40BL1X與BYCHPS
購買即有保證

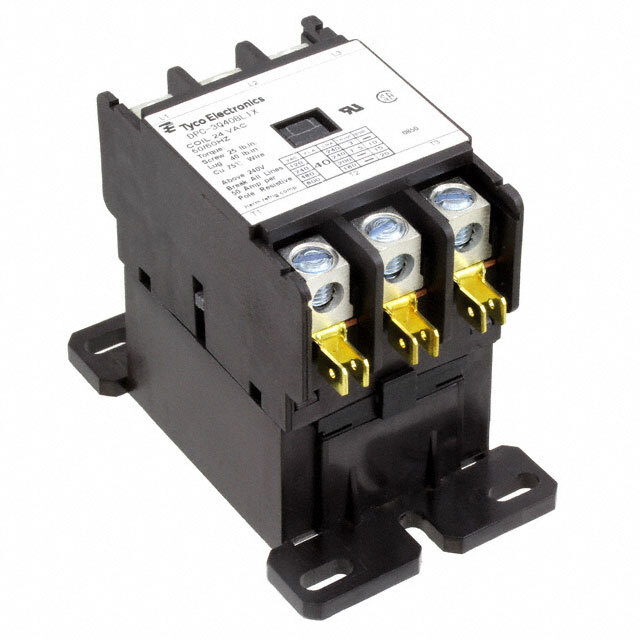

DPC-3Q40BL1X
- 型號:
- DPC-3Q40BL1X
- 描述:
- RELAY CONTACTOR 3FORMX 40A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18805 Pieces
簡單介紹
BYCHIPS是 DPC-3Q40BL1X的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DPC-3Q40BL1X購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VAC |
|---|---|
| 關閉電壓（最小）: | 6 VAC |
| 端接類型: | Box Lug, Quick Connect - 0.250" (6.3mm) |
| 切換電壓: | 600VAC - Max |
| 系列: | DPC, Products Unlimited |
| 繼電器類型: | Contactor |
| 封装: | Bulk |
| 其他名稱: | 2-1672328-1 2-1672328-1-ND 216723281 PB1815 |
| 工作溫度: | -40°C ~ 65°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | DPC-3Q40BL1X |
| 特徵: | Test Button |
| 展開說明: | Contactor Relay 3PST-NO-DM (3 Form X) 24VAC Coil Chassis Mount |
| 描述: | RELAY CONTACTOR 3FORMX 40A 24V |
| 觸點額定值（電流）: | 40A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | 3PST-NO-DM (3 Form X) |
| 線圈電壓: | 24VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 5.8 Ohms |
| 線圈功率: | 6 VA |
| Email: | [email protected] |
