購買 DPC-3T20CS1X與BYCHPS
購買即有保證

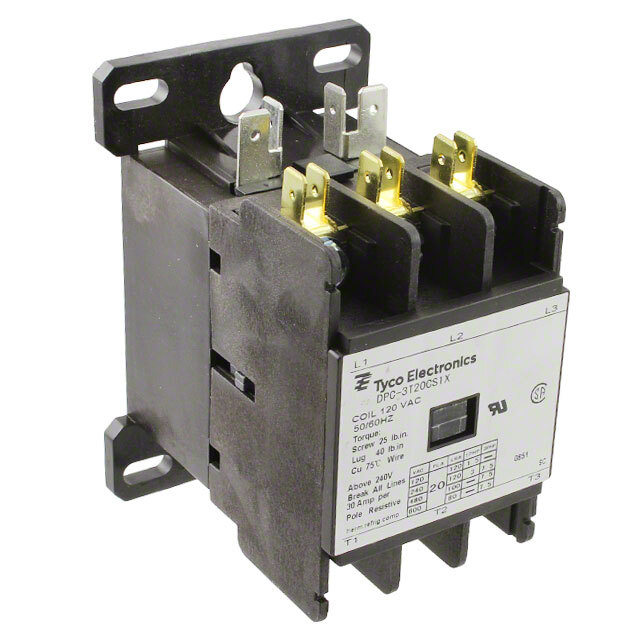

DPC-3T20CS1X
- 型號:
- DPC-3T20CS1X
- 描述:
- RELAY CONTACTOR 3PST 20A 120V
- 無鉛狀態/ RoHS狀態:
- 不適用/符合RoHS
- 庫存數量:
- 13749 Pieces
- 數據表:
- DPC-3T20CS1X.pdf
簡單介紹
BYCHIPS是 DPC-3T20CS1X的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DPC-3T20CS1X購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 88 VAC |
|---|---|
| 關閉電壓（最小）: | 20 VAC |
| 端接類型: | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
| 切換電壓: | 600VAC - Max |
| 系列: | DPC |
| 繼電器類型: | Contactor |
| 封装: | Bulk |
| 其他名稱: | 2-1672328-5 DPC-3T20CS1X-ND PB1827 |
| 工作溫度: | -40°C ~ 65°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 19 Weeks |
| 製造商零件編號: | DPC-3T20CS1X |
| 特徵: | Test Button |
| 展開說明: | Contactor Relay 3PST-NO-DM (3 Form X) 120VAC Coil Chassis Mount |
| 描述: | RELAY CONTACTOR 3PST 20A 120V |
| 觸點額定值（電流）: | 20A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | 3PST-NO-DM (3 Form X) |
| 線圈電壓: | 120VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 147 Ohms |
| 線圈功率: | 6 VA |
| Email: | [email protected] |
