購買 CM1F-P-12V與BYCHPS
購買即有保證

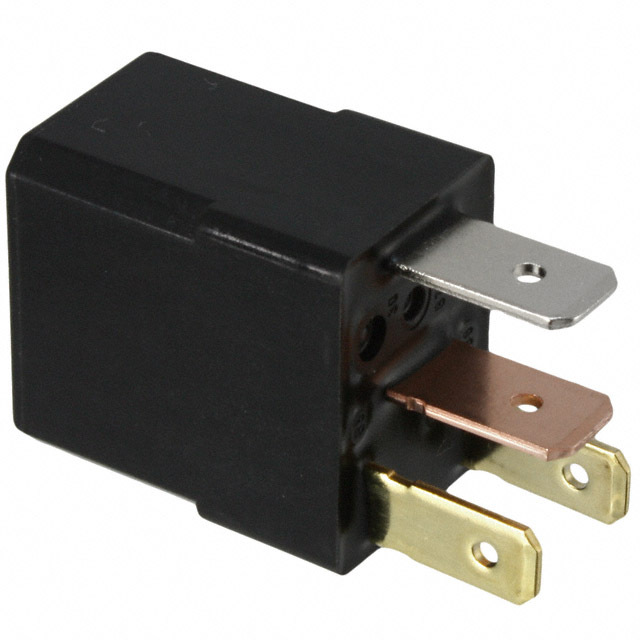

CM1F-P-12V
- 型號:
- CM1F-P-12V
- 製造商:
- Panasonic
- 描述:
- RELAY AUTOMOTIVE SPDT 35A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14023 Pieces
簡單介紹
BYCHIPS是 CM1F-P-12V的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CM1F-P-12V購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 14VDC - Nom |
| 系列: | CM |
| 發布時間: | 10ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 10ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | CM1F-P-12V |
| 特徵: | Sealed - Flux Protection |
| 展開說明: | Automotive Relay SPDT (1 Form C) 12VDC Coil Through Hole |
| 描述: | RELAY AUTOMOTIVE SPDT 35A 12V |
| 觸點額定值（電流）: | 35A |
| 觸點材料: | Silver Alloy, Cadmium Free |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 96 Ohms |
| 線圈功率: | 1.5 W |
| 線圈電流: | 125mA |
| Email: | [email protected] |
