購買 SR6ZB024與BYCHPS
購買即有保證

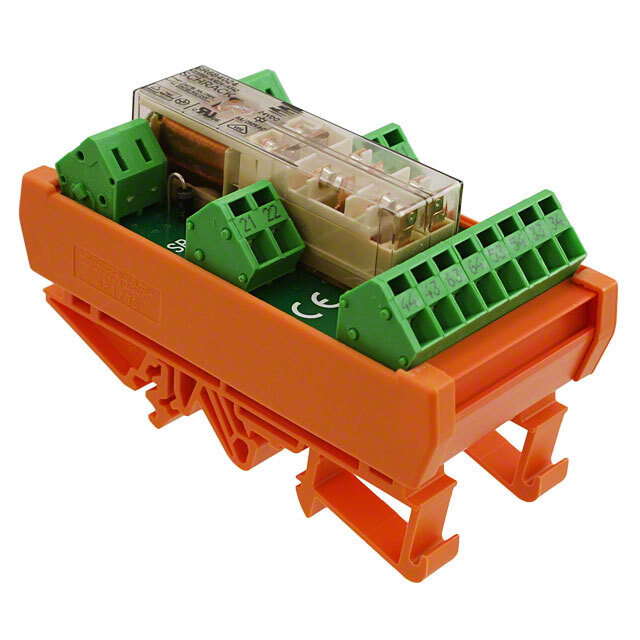

SR6ZB024
- 型號:
- SR6ZB024
- 描述:
- RELAY SAFETY 6PST 8A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14477 Pieces
- 數據表:
- SR6ZB024.pdf
簡單介紹
BYCHIPS是 SR6ZB024的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SR6ZB024購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 21.6 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | Screwless Clamp |
| 切換電壓: | 250VAC - Max |
| 系列: | SR6Z, SCHRACK |
| 繼電器類型: | General Purpose with Socket |
| 封装: | Bulk |
| 其他名稱: | 5-1415033-1 5-1415033-1-ND 514150331 PB1638 SR6ZB024-ND |
| 工作溫度: | -25°C ~ 50°C |
| 安裝類型: | DIN Rail |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 31 Weeks |
| 製造商零件編號: | SR6ZB024 |
| 特徵: | - |
| 展開說明: | General Purpose with Socket Relay 6PST (4 Form A, 2 Form B) 24VDC Coil DIN Rail |
| 描述: | RELAY SAFETY 6PST 8A 24V |
| 觸點額定值（電流）: | 8A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | 6PST (4 Form A, 2 Form B) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 480 Ohms |
| 線圈功率: | 1.2 W |
| 線圈電流: | 50mA |
| Email: | [email protected] |
