購買 CAW-1C-6B與BYCHPS
購買即有保證

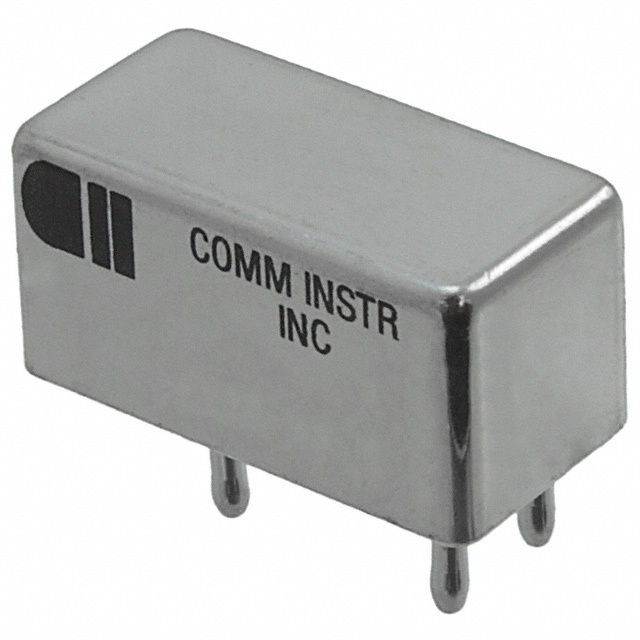

CAW-1C-6B
- 型號:
- CAW-1C-6B
- 描述:
- RELAY GEN PURPOSE SPDT 10A 6V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 16401 Pieces
- 數據表:
- CAW-1C-6B.pdf
簡單介紹
BYCHIPS是 CAW-1C-6B的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CAW-1C-6B購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.5 VDC |
|---|---|
| 關閉電壓（最小）: | 0.45 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 28VDC - Nom |
| 系列: | C, CII |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 8-1617349-7 816173497 A107288 |
| 工作溫度: | -65°C ~ 125°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 21 Weeks |
| 製造商零件編號: | CAW-1C-6B |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 10A 6V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 6VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 40 Ohms |
| 線圈功率: | 900 mW |
| 線圈電流: | 32.1mA |
| Email: | [email protected] |
