購買 B88269X1000C101與BYCHPS
購買即有保證

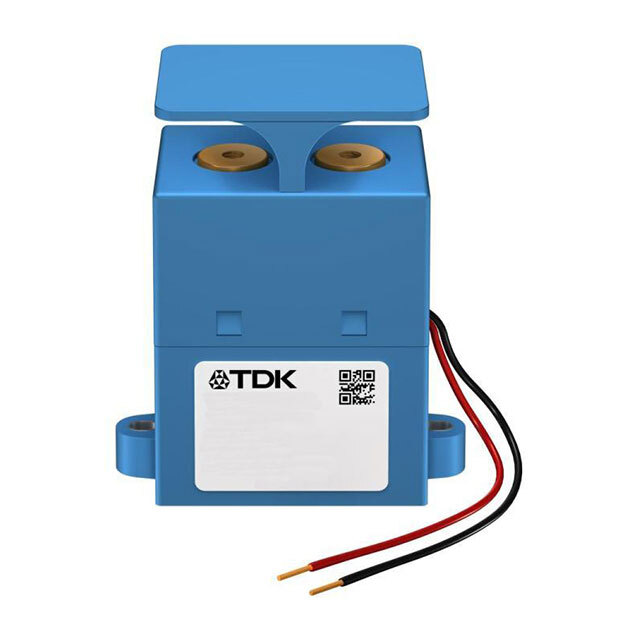

B88269X1000C101
- 型號:
- B88269X1000C101
- 製造商:
- EPCOS
- 描述:
- RELAY CONTACTOR SPST 200A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18449 Pieces
簡單介紹
BYCHIPS是 B88269X1000C101的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的B88269X1000C101購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 9 VDC |
|---|---|
| 關閉電壓（最小）: | 1 VDC |
| 端接類型: | Stud, Wire Leads |
| 切換電壓: | 450VDC - Max |
| 系列: | HVC200A |
| 發布時間: | 20ms |
| 繼電器類型: | Contactor |
| 封装: | Tray |
| 其他名稱: | 495-75626 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 40ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | B88269X1000C101 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | Contactor Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount |
| 描述: | RELAY CONTACTOR SPST 200A 12V |
| 觸點額定值（電流）: | 200A |
| 觸點材料: | Copper Alloy |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 24 Ohms |
| 線圈功率: | 6 W |
| 線圈電流: | 500mA |
| Email: | [email protected] |
