購買 ALQ324與BYCHPS
購買即有保證

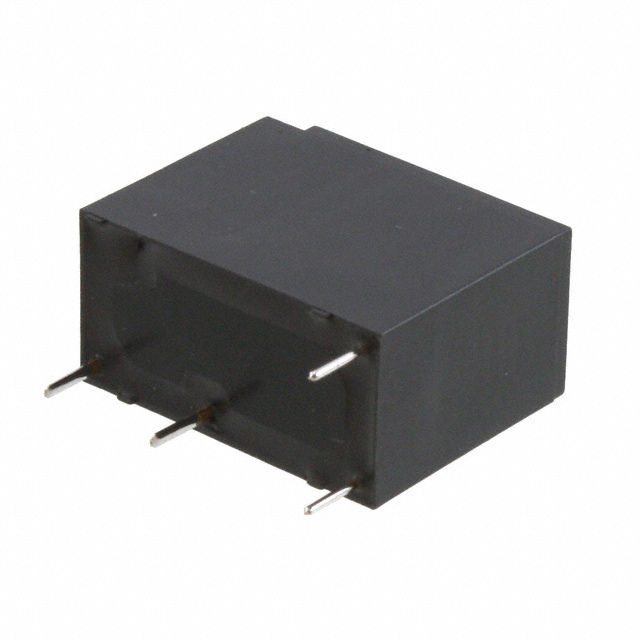

ALQ324
- 型號:
- ALQ324
- 製造商:
- Panasonic
- 描述:
- RELAY GEN PURPOSE SPST 10A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16936 Pieces
簡單介紹
BYCHIPS是 ALQ324的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ALQ324購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 250VAC - Max |
| 系列: | ALQ |
| 發布時間: | 20ms |
| 繼電器類型: | General Purpose |
| 封装: | Tube |
| 其他名稱: | 255-3554 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 20ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 27 Weeks |
| 製造商零件編號: | ALQ324 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPST 10A 24V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 2.88 kOhms |
| 線圈功率: | 200 mW |
| 線圈電流: | 8.3mA |
| Email: | [email protected] |
