購買 AWCCA-50N50H35-C01-B與BYCHPS
購買即有保證

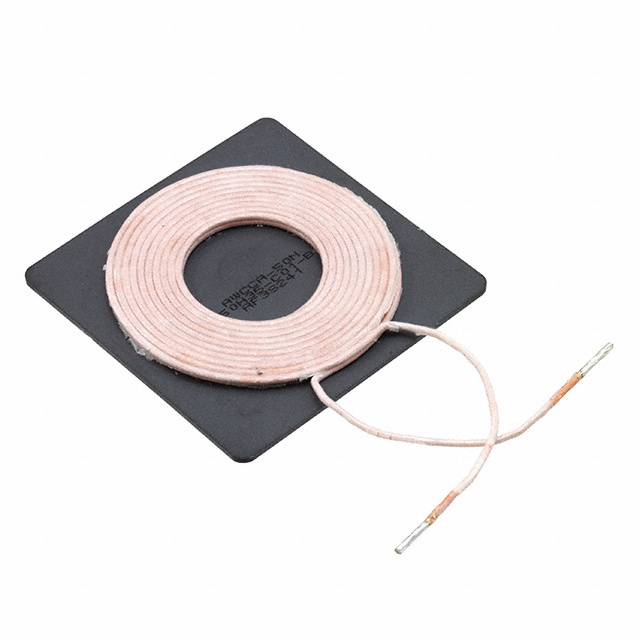

AWCCA-50N50H35-C01-B
- 型號:
- AWCCA-50N50H35-C01-B
- 描述:
- RX TX 1 COIL 1 LAYER 24UH 5.4A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19259 Pieces
簡單介紹
BYCHIPS是 AWCCA-50N50H35-C01-B的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AWCCA-50N50H35-C01-B購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | 1 Coil, 1 Layer |
|---|---|
| 公差: | ±10% |
| 尺寸/尺寸: | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
| 系列: | AWCCA-50N50 |
| Q因子@頻率: | 160 @ 100kHz |
| 其他名稱: | 535-12502 |
| 工作溫度: | -25°C ~ 85°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | AWCCA-50N50H35-C01-B |
| 電感: | 24µH |
| 功能: | Receiver, Transmitter |
| 頻率 - 自諧振: | 3MHz |
| 展開說明: | 1 Coil, 1 Layer 24µH Wireless Charging Coil Receiver, Transmitter 72 mOhm |
| 描述: | RX TX 1 COIL 1 LAYER 24UH 5.4A |
| 直流電阻（DCR）: | 72 mOhm |
| 目前評級: | 5.4A |
| 電流 - 飽和: | 21A |
| Email: | [email protected] |
