購買 AWCCA-48R32H11-C01-B與BYCHPS
購買即有保證

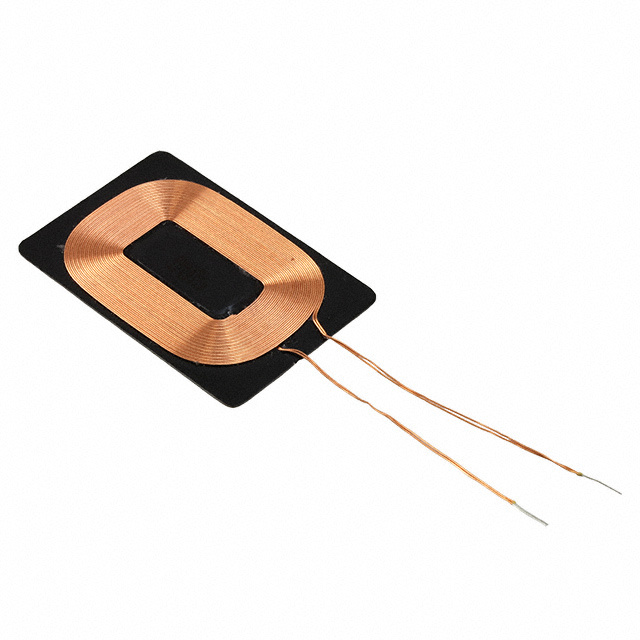

AWCCA-48R32H11-C01-B
- 型號:
- AWCCA-48R32H11-C01-B
- 描述:
- RX 1 COIL 1 LAYER 10.5UH 2.6A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16344 Pieces
簡單介紹
BYCHIPS是 AWCCA-48R32H11-C01-B的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AWCCA-48R32H11-C01-B購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | 1 Coil, 1 Layer |
|---|---|
| 公差: | ±10% |
| 尺寸/尺寸: | 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm) |
| 系列: | AWCCA-48R32 |
| Q因子@頻率: | 28 @ 100kHz |
| 其他名稱: | 535-12501 |
| 工作溫度: | -25°C ~ 85°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | AWCCA-48R32H11-C01-B |
| 電感: | 10.5µH |
| 功能: | Receiver |
| 頻率 - 自諧振: | 11MHz |
| 展開說明: | 1 Coil, 1 Layer 10.5µH Wireless Charging Coil Receiver 190 mOhm |
| 描述: | RX 1 COIL 1 LAYER 10.5UH 2.6A |
| 直流電阻（DCR）: | 190 mOhm |
| 目前評級: | 2.6A |
| 電流 - 飽和: | 15A |
| Email: | [email protected] |
