購買 744284101與BYCHPS
購買即有保證

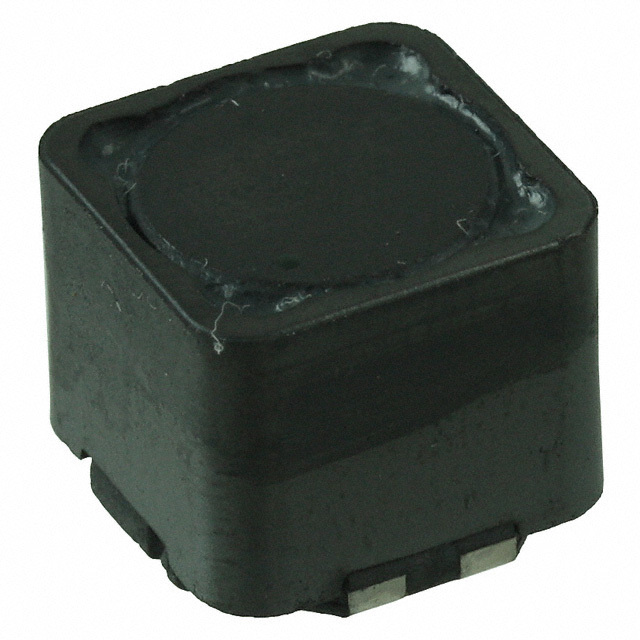

744284101
- 型號:
- 744284101
- 描述:
- CMC 100UH 1A 2LN 40 KOHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17401 Pieces
- 數據表:
- 744284101.pdf
簡單介紹
BYCHIPS是 744284101的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的744284101購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 80V |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| 系列: | WE-SCC |
| 評級: | - |
| 封装: | Original-Reel® |
| 封裝/箱體: | Horizontal, 4 PC Pad |
| 其他名稱: | 732-2970-6 |
| 工作溫度: | -40°C ~ 125°C |
| 行數: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | 744284101 |
| 電感@頻率: | 100µH @ 100kHz |
| 頻率對應阻抗: | 40 kOhm @ 4MHz |
| 高度（最大）: | 0.413" (10.50mm) |
| 過濾器類型: | Signal Line |
| 特徵: | - |
| 展開說明: | 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 40 kOhm @ 4MHz 1A DCR 280 mOhm |
| 描述: | CMC 100UH 1A 2LN 40 KOHM SMD |
| 直流電阻（DCR）（最大值）: | 280 mOhm |
| 卡厚度（mm）: | 1A |
| 認證: | - |
| Email: | [email protected] |
