購買 744282100與BYCHPS
購買即有保證

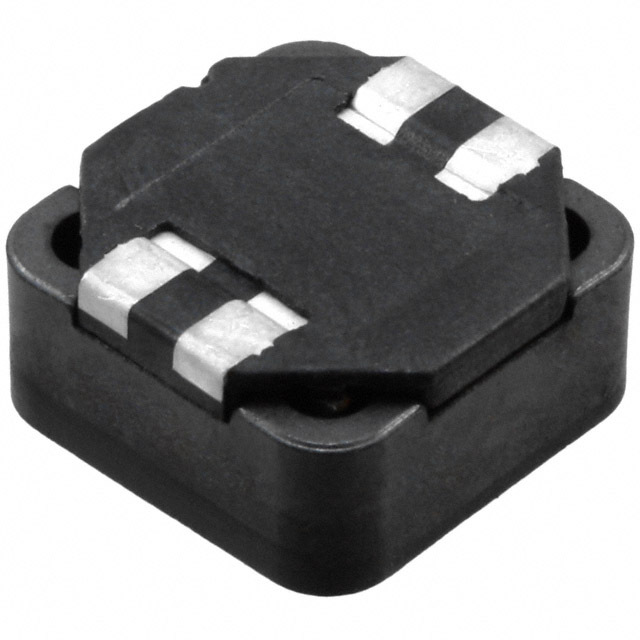

744282100
- 型號:
- 744282100
- 描述:
- CMC 10UH 2.25A 2LN 9 KOHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15170 Pieces
- 數據表:
- 744282100.pdf
簡單介紹
BYCHIPS是 744282100的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的744282100購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 80V |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| 系列: | WE-SCC |
| 評級: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Horizontal, 4 PC Pad |
| 其他名稱: | 732-2966-2 |
| 工作溫度: | -40°C ~ 125°C |
| 行數: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | 744282100 |
| 電感@頻率: | 10µH @ 100kHz |
| 頻率對應阻抗: | 9 kOhm @ 20MHz |
| 高度（最大）: | 0.256" (6.50mm) |
| 過濾器類型: | Power, Signal Line |
| 特徵: | - |
| 展開說明: | 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 9 kOhm @ 20MHz 2.25A DCR 50 mOhm |
| 描述: | CMC 10UH 2.25A 2LN 9 KOHM SMD |
| 直流電阻（DCR）（最大值）: | 50 mOhm |
| 卡厚度（mm）: | 2.25A |
| 認證: | - |
| Email: | [email protected] |
744282100的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
744282101 | Wurth Electronics Inc. | CMC 100UH 900MA 2LN 40 KOHM SMD | 在線詢價 |
 |
744282102 | Wurth Electronics Inc. | CMC 1MH 250MA 2LN 160 KOHM SMD | 在線詢價 |
 |
744281100 | Wurth Electronics Inc. | CMC 10UH 1.1A 2LN 10 KOHM SMD | 在線詢價 |
 |
744284101 | Wurth Electronics Inc. | CMC 100UH 1A 2LN 40 KOHM SMD | 在線詢價 |
 |
B82747E6353A40 | EPCOS (TDK) | CMC 570UH 35A 3LN TH | 在線詢價 |
 |
ELF-18D650U | Panasonic Electronic Components | COMMON MODE CHOKE 700MA 2LN TH | 在線詢價 |
 |
744282010 | Wurth Electronics Inc. | CMC 1UH 4.75A 2LN 1.6 KOHM SMD | 在線詢價 |
 |
TF3435VU-102Y10R0-01 | TDK Corporation | COMMON MODE CHOKE 10A 2LN TH | 在線詢價 |
|
744281471 | Wurth Electronics Inc. | CMC 470UH 150MA 2LN 100 KOHM SMD | 在線詢價 |
 |
744284102 | Wurth Electronics Inc. | CMC 1MH 300MA 2LN 160 KOHM SMD | 在線詢價 |
|
744281101 | Wurth Electronics Inc. | CMC 100UH 350MA 2LN 50 KOHM SMD | 在線詢價 |
|
TF6035T-501Y25R0-01 | TDK Corporation | COMMON MODE CHOKE 25A 3LN TH | 在線詢價 |
 |
744284100 | Wurth Electronics Inc. | CMC 10UH 2.75A 2LN 10 KOHM SMD | 在線詢價 |
