購買 ZCYS51R5-M8PT-01與BYCHPS
購買即有保證

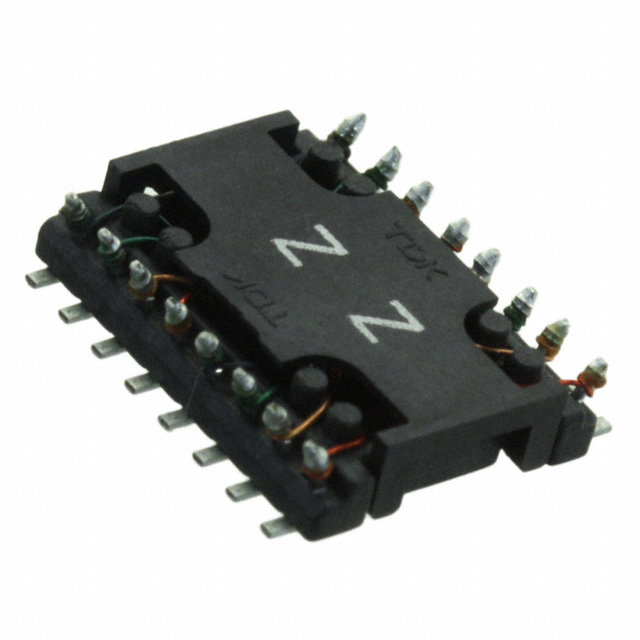

ZCYS51R5-M8PT-01
- 型號:
- ZCYS51R5-M8PT-01
- 製造商:
- TDK Corporation
- 描述:
- CMC 500MA 8LN 100 OHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15497 Pieces
簡單介紹
BYCHIPS是 ZCYS51R5-M8PT-01的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ZCYS51R5-M8PT-01購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 50V |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.433" L x 0.370" W (11.00mm x 9.40mm) |
| 系列: | ZCYS |
| 評級: | - |
| 封装: | Cut Tape (CT) |
| 封裝/箱體: | - |
| 其他名稱: | 445-6699-1 |
| 工作溫度: | -25°C ~ 85°C |
| 行數: | 8 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | ZCYS51R5-M8PT-01 |
| 電感@頻率: | - |
| 頻率對應阻抗: | 100 Ohm @ 100MHz |
| 高度（最大）: | 0.098" (2.50mm) |
| 過濾器類型: | Signal Line |
| 特徵: | - |
| 展開說明: | 8 Line Common Mode Choke Surface Mount 100 Ohm @ 100MHz 500mA DCR 300 mOhm |
| 描述: | CMC 500MA 8LN 100 OHM SMD |
| 直流電阻（DCR）（最大值）: | 300 mOhm |
| 卡厚度（mm）: | 500mA |
| 認證: | - |
| Email: | [email protected] |
