購買 WPH4003-1E與BYCHPS
購買即有保證

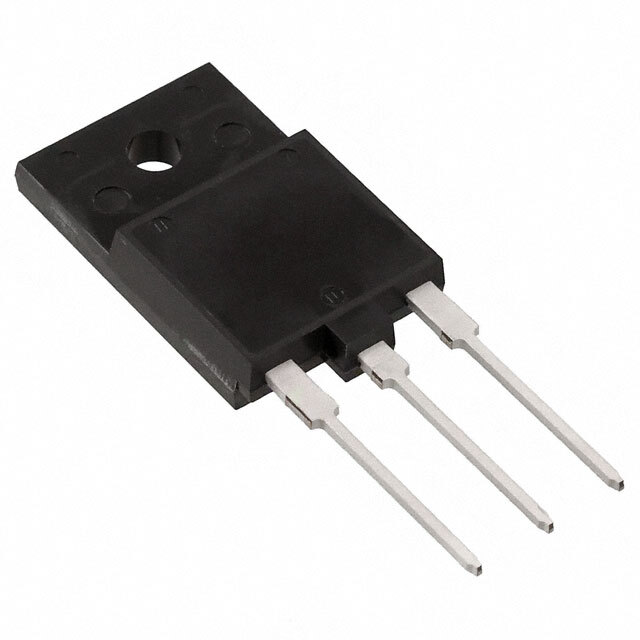

WPH4003-1E
- 型號:
- WPH4003-1E
- 描述:
- MOSFET N-CH 1700V 2.5A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13190 Pieces
- 數據表:
- WPH4003-1E.pdf
簡單介紹
BYCHIPS是 WPH4003-1E的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的WPH4003-1E購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | - |
|---|---|
| Vgs（最大）: | ±30V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | TO-3PF |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 10.5 Ohm @ 1.5A, 10V |
| 功率耗散（最大）: | 3W (Ta), 55W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | TO-3P-3 Full Pack |
| 其他名稱: | WPH4003-1EOS |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | WPH4003-1E |
| 輸入電容（Ciss）（Max）@ Vds: | 850pF @ 30V |
| 柵極電荷（Qg）（Max）@ Vgs: | 48nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 1700V (1.7kV) 2.5A (Tc) 3W (Ta), 55W (Tc) Through Hole TO-3PF |
| 驅動電壓（最大Rds開，最小Rds開）: | 10V |
| 漏極至源極電壓（Vdss）: | 1700V (1.7kV) |
| 描述: | MOSFET N-CH 1700V 2.5A |
| 電流 - 25°C連續排水（Id）: | 2.5A (Tc) |
| Email: | [email protected] |
