購買 VS-ETF075Y60U與BYCHPS
購買即有保證

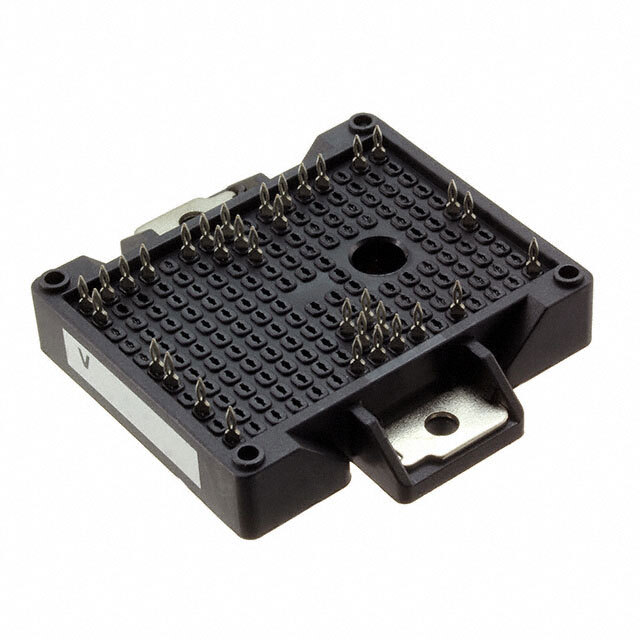

VS-ETF075Y60U
- 型號:
- VS-ETF075Y60U
- 描述:
- IGBT 600V 109A 294W EMIPAK-2B
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14615 Pieces
簡單介紹
BYCHIPS是 VS-ETF075Y60U的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的VS-ETF075Y60U購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 600V |
|---|---|
| 的VCE（on）（最大）@ VGE，IC: | 1.93V @ 15V, 75A |
| 供應商設備封裝: | EMIPAK-2B |
| 系列: | - |
| 功率 - 最大: | 294W |
| 封裝/箱體: | EMIPAK-2B |
| 其他名稱: | VS-ETF075Y60U-ND VS-ETF075Y60UGI VSETF075Y60U |
| 工作溫度: | 175°C (TJ) |
| NTC熱敏電阻: | Yes |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | VS-ETF075Y60U |
| 輸入電容（連鎖商店）@的Vce: | 4.44nF @ 30V |
| 輸入: | Standard |
| IGBT類型: | Trench |
| 展開說明: | IGBT Module Trench Three Level Inverter 600V 109A 294W Chassis Mount EMIPAK-2B |
| 描述: | IGBT 600V 109A 294W EMIPAK-2B |
| 電流 - 集電極截止（最大）: | 100µA |
| 電流 - 集電極（Ic）（最大）: | 109A |
| 組態: | Three Level Inverter |
| Email: | [email protected] |
