購買 VLF12060T-470M2R8與BYCHPS
購買即有保證

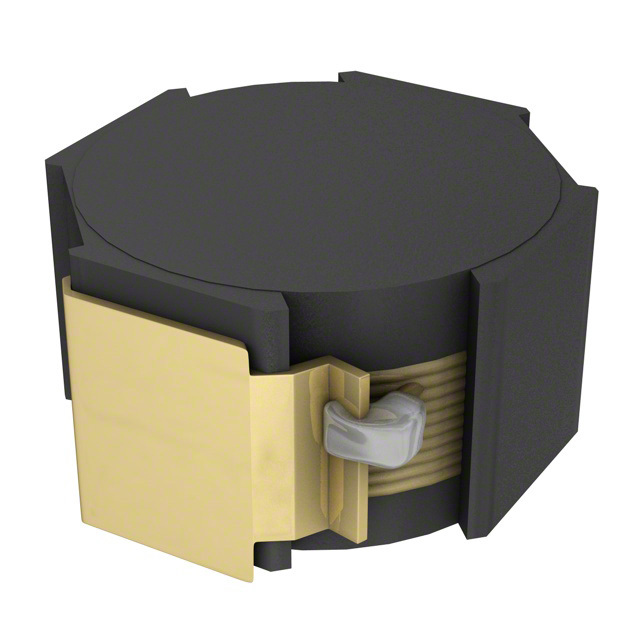

VLF12060T-470M2R8
- 型號:
- VLF12060T-470M2R8
- 製造商:
- TDK Corporation
- 描述:
- FIXED IND 47UH 2.8A 71 MOHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19516 Pieces
簡單介紹
BYCHIPS是 VLF12060T-470M2R8的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的VLF12060T-470M2R8購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.472" L x 0.461" W (12.00mm x 11.70mm) |
| 屏蔽: | Shielded |
| 系列: | VLF |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Original-Reel® |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 445-3597-6 |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商零件編號: | VLF12060T-470M2R8 |
| 電感: | 47µH |
| 高度 - 座高（最大）: | 0.236" (6.00mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 47µH Shielded Wirewound Inductor 2.8A 71 mOhm Max Nonstandard |
| 描述: | FIXED IND 47UH 2.8A 71 MOHM SMD |
| 直流電阻（DCR）: | 71 mOhm Max |
| 目前評級: | 2.8A |
| 電流 - 飽和: | 2.8A |
| Email: | [email protected] |
