購買 VFMA-15F41-S01與BYCHPS
購買即有保證

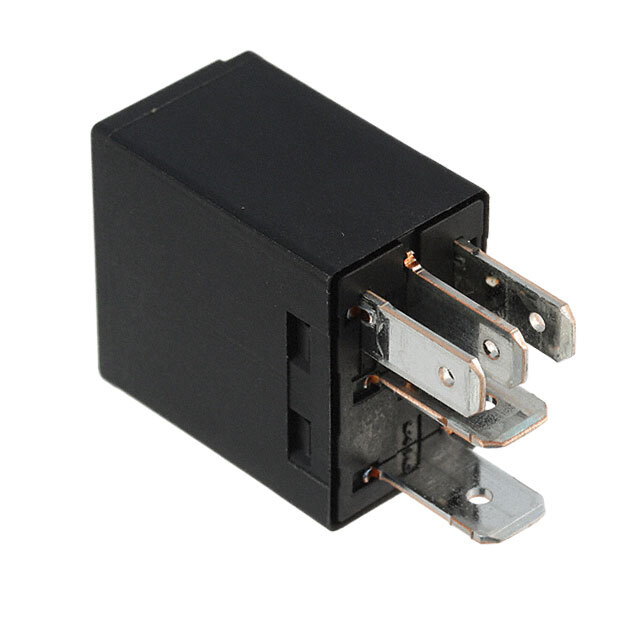

VFMA-15F41-S01
- 型號:
- VFMA-15F41-S01
- 描述:
- RELAY AUTOMOTIVE SPDT 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18861 Pieces
簡單介紹
BYCHIPS是 VFMA-15F41-S01的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的VFMA-15F41-S01購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7.2 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | Plug In, Quick Connect - 0.250" (6.3mm) |
| 切換電壓: | 12VDC - Nom |
| 系列: | VFM |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | 1393293-8 VFMA15F41S01 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | VFMA-15F41-S01 |
| 特徵: | Resistor |
| 展開說明: | Automotive Relay SPDT (1 Form C) 12VDC Coil Socketable |
| 描述: | RELAY AUTOMOTIVE SPDT 12V |
| 觸點額定值（電流）: | 30A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 90 Ohms |
| 線圈功率: | 1.6 W |
| 線圈電流: | 133.3mA |
| Email: | [email protected] |
