購買 V23100V4305C011與BYCHPS
購買即有保證

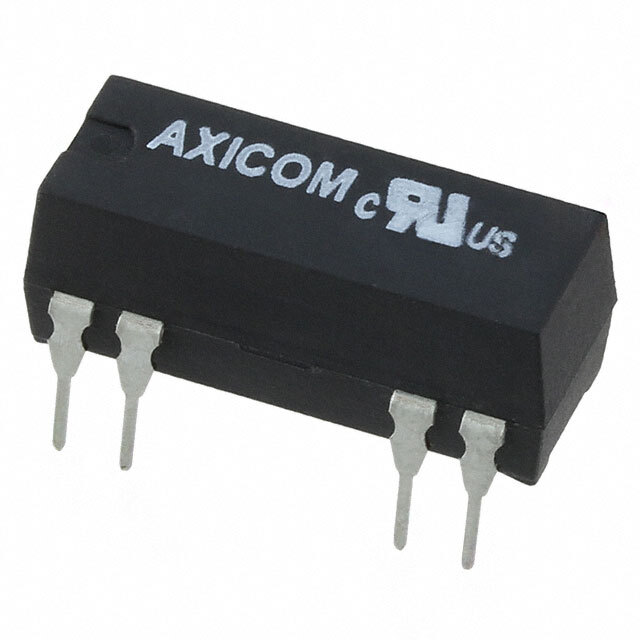

V23100V4305C011
- 型號:
- V23100V4305C011
- 描述:
- RELAY REED SPDT 250MA 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17416 Pieces
簡單介紹
BYCHIPS是 V23100V4305C011的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的V23100V4305C011購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.5 VDC |
|---|---|
| 關閉電壓（最小）: | 0.75 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 175VDC - Max |
| 系列: | V23100-V4, AXICOM |
| 發布時間: | 1.6ms |
| 繼電器類型: | Reed |
| 封装: | Tube |
| 其他名稱: | 2-1393763-3 2-1393763-3-ND PB1620 V23100V4305C 11 V23100V4305C011-ND |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 1.1ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | V23100V4305C011 |
| 特徵: | Diode, Electrostatic Shield |
| 展開說明: | Reed Relay SPDT (1 Form C) Through Hole |
| 描述: | RELAY REED SPDT 250MA 5V |
| 觸點額定值（電流）: | 250mA |
| 觸點材料: | Ruthenium (Ru) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 200 Ohms |
| 線圈功率: | 125 mW |
| 線圈電流: | 25mA |
| Email: | [email protected] |
