購買 V23047-A1036-A501與BYCHPS
購買即有保證

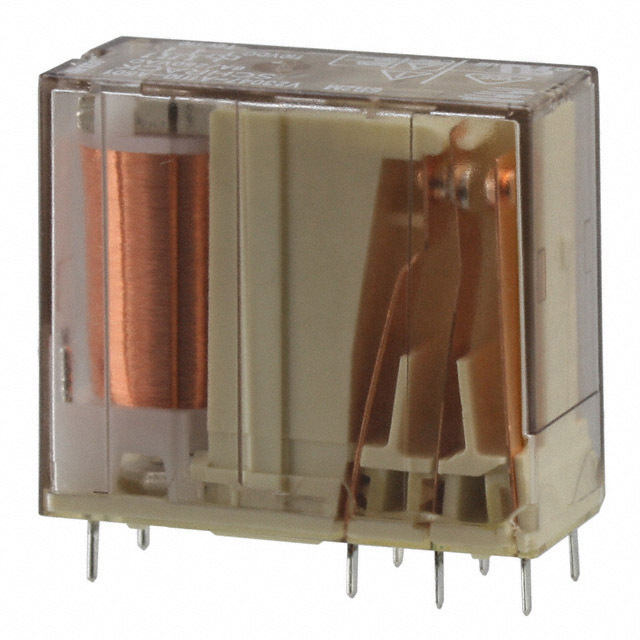

V23047-A1036-A501
- 型號:
- V23047-A1036-A501
- 描述:
- RELAY SAFETY DPDT 6A 36V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 20206 Pieces
簡單介紹
BYCHIPS是 V23047-A1036-A501的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的V23047-A1036-A501購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 27 VDC |
|---|---|
| 關閉電壓（最小）: | 3.6 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 400VAC - Max |
| 系列: | SR2M, SCHRACK |
| 繼電器類型: | Safety |
| 封装: | Tube |
| 其他名稱: | 2-1393258-0 PB1294 V23047A1036A501 V23047A1036A501-ND |
| 工作溫度: | -25°C ~ 70°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | V23047-A1036-A501 |
| 特徵: | Sealed - Fully |
| 展開說明: | Safety Relay DPDT (2 Form C) 36VDC Coil Through Hole |
| 描述: | RELAY SAFETY DPDT 6A 36V |
| 觸點額定值（電流）: | 6A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 36VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.85 kOhms |
| 線圈功率: | 700 mW |
| 線圈電流: | 19.4mA |
| Email: | [email protected] |
