購買 V23026F1052B201與BYCHPS
購買即有保證

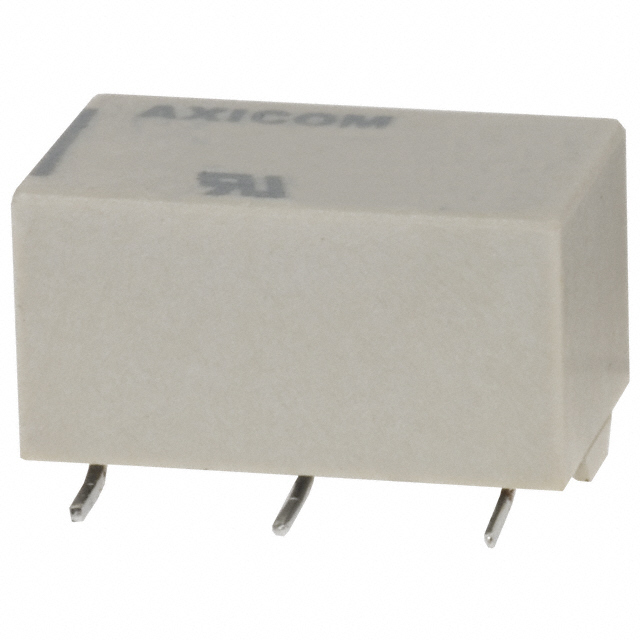

V23026F1052B201
- 型號:
- V23026F1052B201
- 描述:
- RELAY GEN PURPOSE SPDT 1A 12V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 12409 Pieces
簡單介紹
BYCHIPS是 V23026F1052B201的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的V23026F1052B201購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 9 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Gull Wing |
| 切換電壓: | 150VAC, 125VDC - Max |
| 系列: | V23026, AXICOM |
| 發布時間: | 2ms |
| 繼電器類型: | General Purpose |
| 封装: | Tape & Reel (TR) |
| 其他名稱: | 4-1393774-3 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 2ms |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | V23026F1052B201 |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPDT (1 Form C) Surface Mount |
| 描述: | RELAY GEN PURPOSE SPDT 1A 12V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Latching, Single Coil |
| 線圈電阻: | 4.5 kOhms |
| 線圈功率: | 32 mW |
| 線圈電流: | 2.7mA |
| Email: | [email protected] |
