購買 TN6727A與BYCHPS
購買即有保證

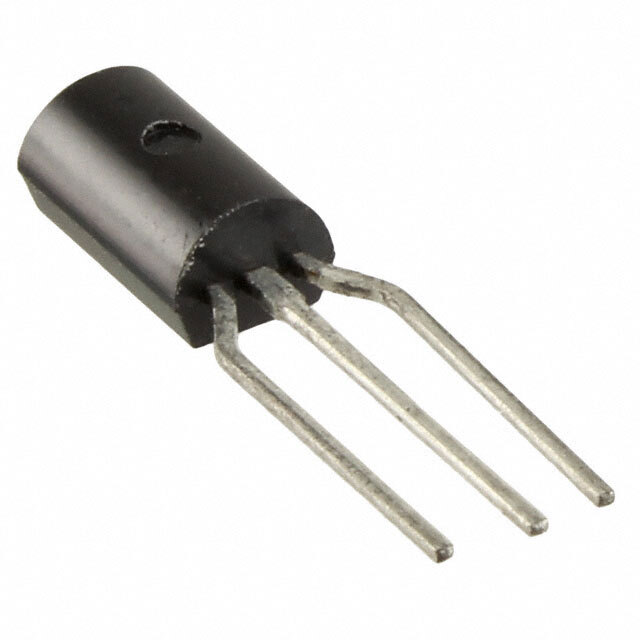

TN6727A
- 型號:
- TN6727A
- 描述:
- TRANS PNP 40V 1.5A TO-226
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16382 Pieces
- 數據表:
- TN6727A.pdf
簡單介紹
BYCHIPS是 TN6727A的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TN6727A購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 40V |
|---|---|
| Vce飽和（最大）@ IB，IC: | 500mV @ 100mA, 1A |
| 晶體管類型: | PNP |
| 供應商設備封裝: | TO-226 |
| 系列: | - |
| 功率 - 最大: | 1W |
| 封装: | Bulk |
| 封裝/箱體: | TO-226-3, TO-92-3 Long Body |
| 其他名稱: | TN6727A-ND TN6727AFS |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | TN6727A |
| 頻率 - 轉換: | - |
| 展開說明: | Bipolar (BJT) Transistor PNP 40V 1.5A 1W Through Hole TO-226 |
| 描述: | TRANS PNP 40V 1.5A TO-226 |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 50 @ 1A, 1V |
| 電流 - 集電極截止（最大）: | 100nA (ICBO) |
| 電流 - 集電極（Ic）（最大）: | 1.5A |
| Email: | [email protected] |
