購買 TM8116NLT與BYCHPS
購買即有保證

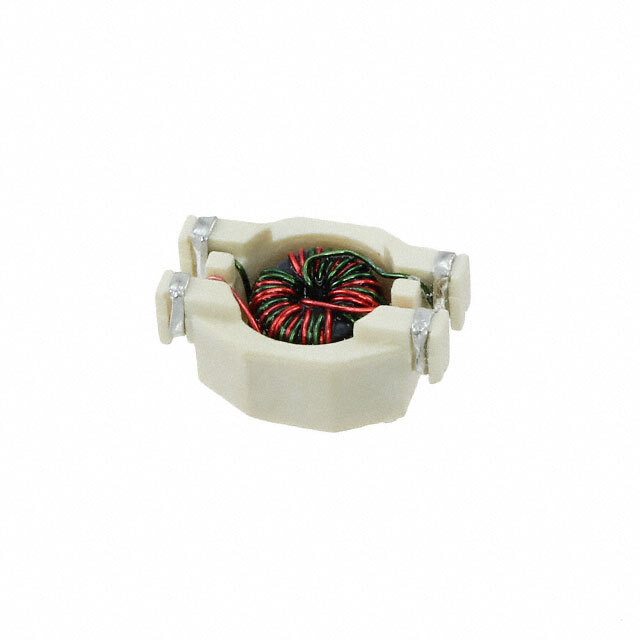

TM8116NLT
- 型號:
- TM8116NLT
- 描述:
- CMC 470UH 2LN 800OHM SMD AECQ200
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19050 Pieces
- 數據表:
- TM8116NLT.pdf
簡單介紹
BYCHIPS是 TM8116NLT的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TM8116NLT購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.350" L x 0.248" W (8.90mm x 6.30mm) |
| 系列: | - |
| 評級: | AEC-Q200 |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Horizontal, 4 PC Pad |
| 工作溫度: | -40°C ~ 125°C |
| 行數: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 2A (4 Weeks) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | TM8116NLT |
| 電感@頻率: | 470µH @ 100kHz |
| 頻率對應阻抗: | 800 Ohm @ 100MHz |
| 高度（最大）: | 0.161" (4.10mm) |
| 過濾器類型: | - |
| 特徵: | - |
| 展開說明: | 470µH @ 100kHz 2 Line Common Mode Choke Surface Mount 800 Ohm @ 100MHz DCR 300 mOhm |
| 描述: | CMC 470UH 2LN 800OHM SMD AECQ200 |
| 直流電阻（DCR）（最大值）: | 300 mOhm |
| 卡厚度（mm）: | - |
| 認證: | - |
| Email: | [email protected] |
