購買 TCLAMP1202P.TGT與BYCHPS
購買即有保證

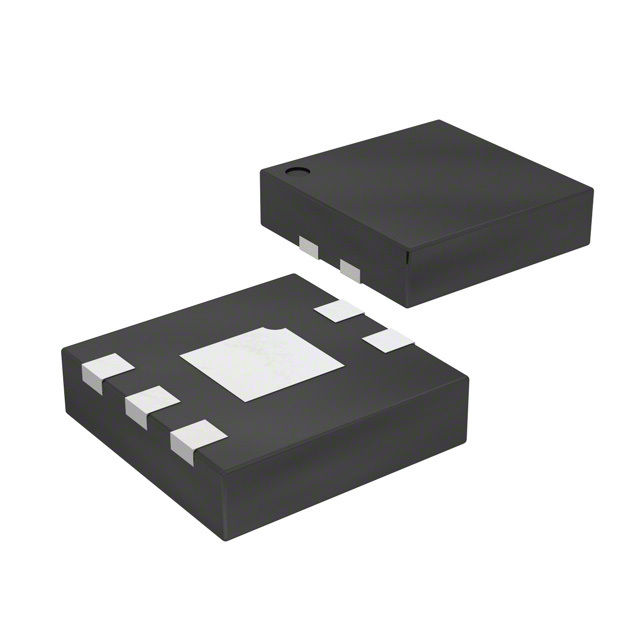

TCLAMP1202P.TGT
- 型號:
- TCLAMP1202P.TGT
- 製造商:
- Semtech
- 描述:
- TVS DIODE 12VWM 25VC
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15296 Pieces
簡單介紹
BYCHIPS是 TCLAMP1202P.TGT的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TCLAMP1202P.TGT購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 反向隔離（標準值）: | 12V (Max) |
|---|---|
| 電壓 - 箝位（最大）@ Ipp: | 25V |
| 電壓 - 擊穿（最小值）: | 13.3V |
| 單向通道: | 2 |
| 類型: | Steering (Rail to Rail) |
| 供應商設備封裝: | SLP2020P5 (2x2) |
| 系列: | TransClamp™ |
| 電源線保護: | Yes |
| 功率峰值脈衝: | 300W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 5-UDFN, Exposed Pad |
| 其他名稱: | TCLAMP1202P.TGTTR TCLAMP1202P.TGTTR-ND TCLAMP1202PTGTTR |
| 工作溫度: | -55°C ~ 125°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | TCLAMP1202P.TGT |
| 描述: | TVS DIODE 12VWM 25VC |
| 電流 - 峰值脈衝（10 /1000μs）: | 12A |
| 電容@頻率: | 12pF @ 1MHz |
| 應用: | General Purpose |
| Email: | [email protected] |
