購買 TC10102與BYCHPS
購買即有保證

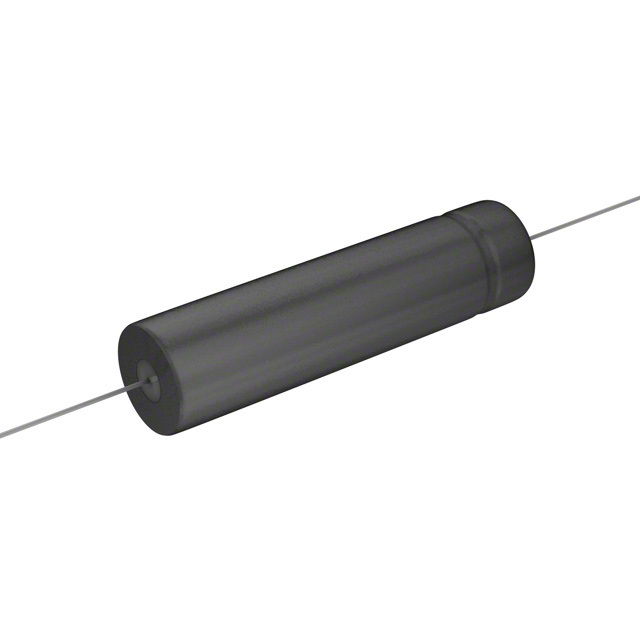

TC10102
- 型號:
- TC10102
- 描述:
- CAP ALUM 1000UF 100V AXIAL
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 12610 Pieces
- 數據表:
- TC10102.pdf
簡單介紹
BYCHIPS是 TC10102的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TC10102購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 100V |
|---|---|
| 公差: | -10%, +75% |
| 表面貼裝佔地面積: | - |
| 尺寸/尺寸: | 1.000" Dia x 3.875" L (25.40mm x 98.43mm) |
| 系列: | TC |
| 紋波電流: | 3.918A @ 120Hz |
| 極化: | Polar |
| 封装: | Bulk |
| 封裝/箱體: | Axial, Can |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | TC10102 |
| 壽命@溫度。: | 1000 Hrs @ 85°C |
| 引線間距: | - |
| 阻抗: | - |
| 高度 - 座高（最大）: | - |
| 展開說明: | 1000µF 100V Aluminum Capacitors Axial, Can 80 mOhm @ 120Hz 1000 Hrs @ 85°C |
| ESR（等效串聯電阻）: | 80 mOhm @ 120Hz |
| 描述: | CAP ALUM 1000UF 100V AXIAL |
| 電容: | 1000µF |
| 應用: | General Purpose |
| Email: | [email protected] |
