購買 T9AS5D12-9與BYCHPS
購買即有保證

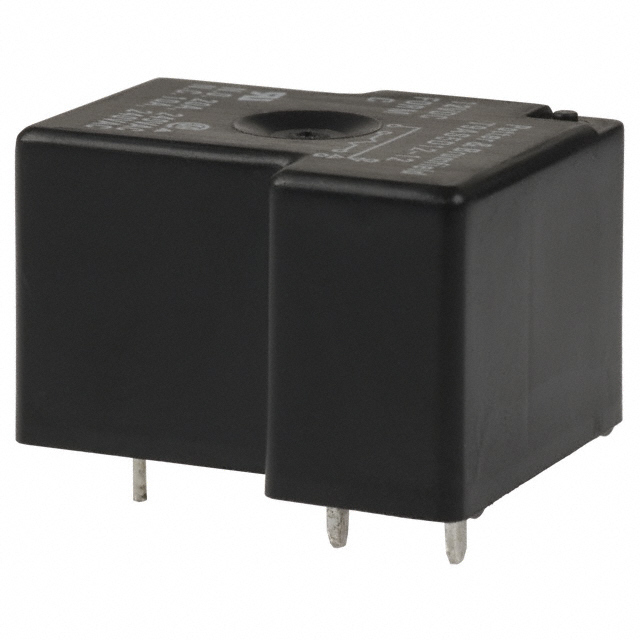

T9AS5D12-9
- 型號:
- T9AS5D12-9
- 描述:
- RELAY GEN PURPOSE SPDT 20A 9V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 17337 Pieces
簡單介紹
BYCHIPS是 T9AS5D12-9的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的T9AS5D12-9購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 6.75 VDC |
|---|---|
| 關閉電壓（最小）: | 0.9 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 240VAC - Max |
| 系列: | T9A |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 4-1393210-0 PB2141 T9AS5D12-9-ND |
| 工作溫度: | -55°C ~ 85°C |
| 操作時間: | 15ms |
| 安裝類型: | Through Hole |
| 製造商標準交貨期: | 19 Weeks |
| 製造商零件編號: | T9AS5D12-9 |
| 特徵: | Insulation - Class F, Sealed - Fully |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 20A 9V |
| 觸點額定值（電流）: | 20A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 9VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 81 Ohms |
| 線圈功率: | 1 W |
| 線圈電流: | 111mA |
| Email: | [email protected] |
