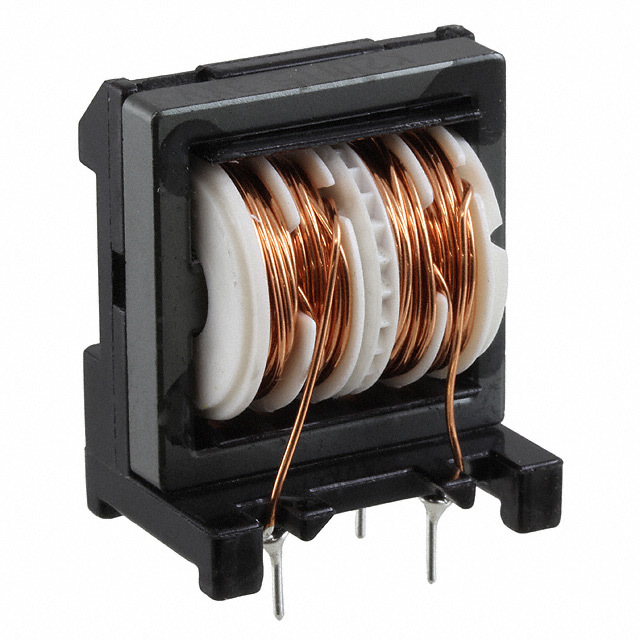

SS28V-K20115-CH
- 型號:
- SS28V-K20115-CH
- 製造商:
- KEMET
- 描述:
- CMC 11.5MH 2A 2LN TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16413 Pieces
簡單介紹
BYCHIPS是 SS28V-K20115-CH的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SS28V-K20115-CH購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | 250V |
| 尺寸/尺寸: | 1.181" L x 0.866" W (30.00mm x 22.00mm) |
| 系列: | SS |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Vertical, 4 PC Pin |
| 其他名稱: | 399-10760 |
| 工作溫度: | -25°C ~ 120°C |
| 行數: | 2 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 20 Weeks |
| 製造商零件編號: | SS28V-K20115-CH |
| 電感@頻率: | 11.5mH @ 1kHz |
| 頻率對應阻抗: | - |
| 高度（最大）: | 1.398" (35.50mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 11.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 2A DCR 220 mOhm |
| 描述: | CMC 11.5MH 2A 2LN TH |
| 直流電阻（DCR）（最大值）: | 220 mOhm |
| 卡厚度（mm）: | 2A |
| 認證: | - |
| Email: | [email protected] |
