購買 SP7538PUTG與BYCHPS
購買即有保證

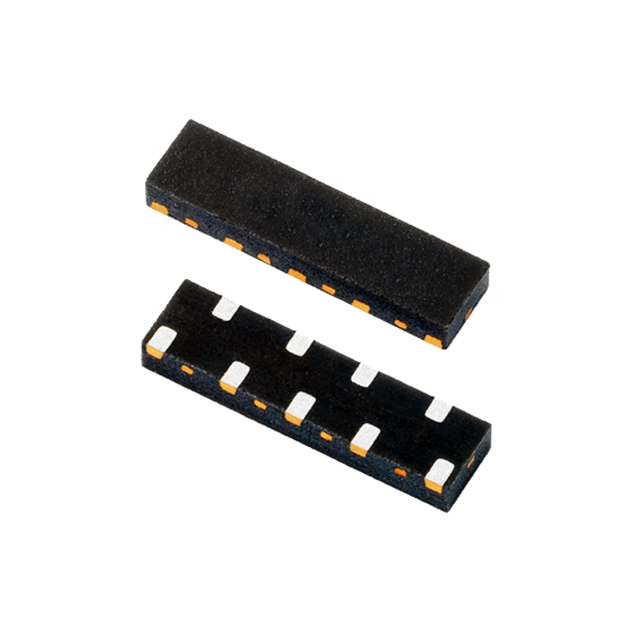

SP7538PUTG
- 型號:
- SP7538PUTG
- 製造商:
- Littelfuse
- 描述:
- TVS DIODE ARRAY 12KV UDFN9
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18649 Pieces
- 數據表:
- SP7538PUTG.pdf
簡單介紹
BYCHIPS是 SP7538PUTG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SP7538PUTG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 反向隔離（標準值）: | 5V (Max) |
|---|---|
| 電壓 - 箝位（最大）@ Ipp: | 7V (Typ) |
| 電壓 - 擊穿（最小值）: | - |
| 單向通道: | 8 |
| 類型: | Steering (Rail to Rail) |
| 供應商設備封裝: | 9-µDFN (3.8x1) |
| 系列: | SP7538P |
| 電源線保護: | Yes |
| 功率峰值脈衝: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 9-UDFN |
| 其他名稱: | F7417TR |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | SP7538PUTG |
| 描述: | TVS DIODE ARRAY 12KV UDFN9 |
| 電流 - 峰值脈衝（10 /1000μs）: | 2A (8/20µs) |
| 電容@頻率: | 0.5pF @ 1MHz |
| 應用: | HDMI |
| Email: | [email protected] |
