購買 SCI-9980-250與BYCHPS
購買即有保證

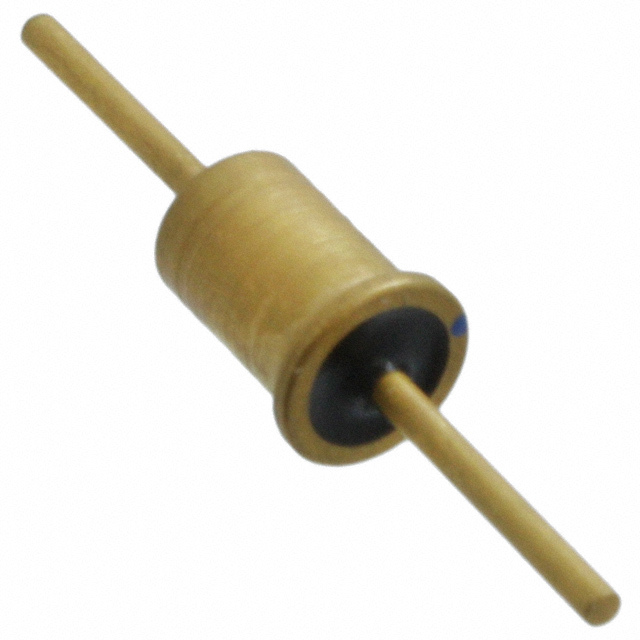

SCI-9980-250
- 型號:
- SCI-9980-250
- 描述:
- FILTER LC 25PF CUSTOM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17267 Pieces
簡單介紹
BYCHIPS是 SCI-9980-250的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SCI-9980-250購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 200V |
|---|---|
| 值: | C = 25pF |
| 類型: | Low Pass |
| 技術: | LC |
| 尺寸/尺寸: | 0.156" Dia x 0.200" L (3.96mm x 5.08mm) |
| 系列: | 9900 |
| 電阻 - 通道（歐姆）: | 0.01 |
| 封装: | Bulk |
| 封裝/箱體: | Axial, Eyelet |
| 其他名稱: | 1171-1111 SCI9980250 |
| 工作溫度: | -55°C ~ 125°C |
| 通道數: | 1 |
| 安裝類型: | Custom |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | SCI-9980-250 |
| 高度: | - |
| 濾波器階: | 2nd |
| 展開說明: | LC EMI Filter 2nd Order Low Pass 1 Channel C = 25pF 10A Axial, Eyelet |
| ESD保護: | No |
| 描述: | FILTER LC 25PF CUSTOM |
| 當前: | 10A |
| 中心/截止頻率: | - |
| 衰減值: | 13dB @ 1GHz |
| 應用: | Microwave |
| Email: | [email protected] |
